Đồng hồ đo áp suất Wise Control Việt Nam

Nominal diameter	63, 80 and 100 mm
Accuracy	63 and 80 mm : ±1.6 % of full scale 100 mm : ±1.0 % of full scale
Pressure range (MPa, kPa, bar)	Steady : 75 % of full scale (63 and 80 mm) 100 % of full scale (100 mm) Over range protection : 130 % of full scale
Working pressure	Steady : 75 % of full scale Over range protection : 130 % of full scale
Working temperature	Ambient : -20 ~ 65 °C Fluid : Max. 121 °C
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.5 % per 10 ℃ of full scale

Standard features

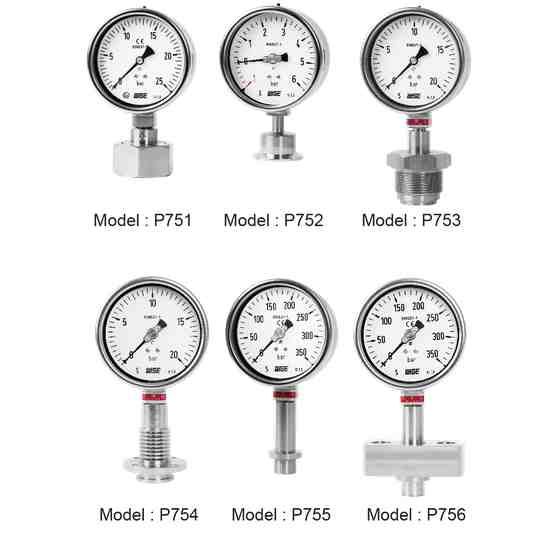

Process connection	316SS P751 : 1½” and 2″ Nut P752 : 1″, 1½”, 2″, clamp connection P753 : PF¾”, PF1″, PF1½”, male screw P754 : Standard and non standard flange P755 : Homogenizer P756 : Homogenizer flange (95 x 43 x 28 mm)
Body	Stainless steel (316SS)
Diaphragm	Stainless steel (316L SS) Electropolished diaphragm Ra 12 ~ 20 ㎛
System filling	Food grade oil (FDA certified)
Certificates	ATEX Ex II GD c IIC TX
