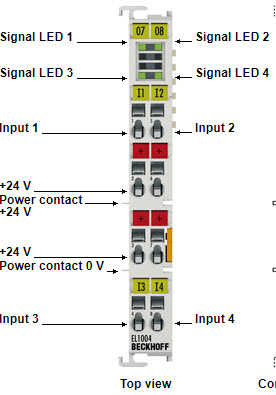

EL1004 Beckhoff
4-channel digital input terminal 24 V DC, 3 ms
The EL1004 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. Digital input terminals from the EL100x series have a 3 ms input filter. The EtherCAT Terminals indicate their state via an LED.
| Technical data | EL1004 | ES1004 |
|---|---|
| Connection technology | 2-wire |
| Specification | EN 61131-2, type 1/3 |
| Number of inputs | 4 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Input filter | typ. 3.0 ms |
| Distributed clocks | – |
| Current consumption power contacts | typ. 2 mA + load |
| Current consumption E-bus | typ. 90 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width in the process image | 4 inputs |
| Configuration | no address or configuration setting |
| Special features | standard input terminals for 2-wire connection |
| Weight | approx. 50 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex-Marking | II 3 G Ex nA IIC T4 Gc Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc |
| Ordering information | |
|---|---|
| EL1004-0020 | 4-channel digital input terminal 24 V DC, functional isolation 2500 V, (Testing voltage E-bus/field potential, production test); CE, UL |
| Nhà cung cấp | |
|---|---|
| Xuất xứ | Đức – Germany |
