Process Control Systems

Edge Position Control Systems

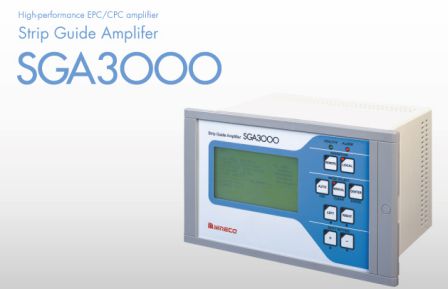

Strip Guide Amplifier SGA3000

High-performance EPC/CPC amplifier

The Strip Guide Amplifier is a high-performance, microprocessor-equipped EPC/CPC amplifier.
It offers advanced EPC/CPC controls such as stagger winding and cascading which are unavailable from conventional analog amplifiers. Also, this product is one-ninth the volume and one-fourth the weight of previous products. Finding the installation space is no longer an issue.

Feature

• The LCD screen makes it easy to check setting values and output signal status.
• All operations use the push buttons on the control panel for parameter settings.
• Control is possible by P, I or PI action.
• A line speed signal input enables automatic adjustment of control gain to compensate for changes in line speed. PLG signal input enables stagger winding.
• Sensor signals can be taken from up to two sensor systems, enabling cascading control operation.
• OPTION The SGA3000 stores control signals and output values in its ring buffer, which helps solve problems quicker.

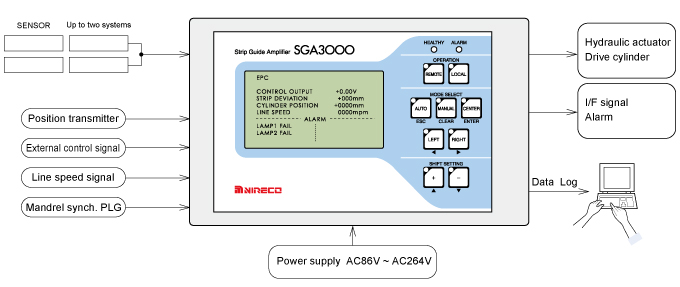

Configuration
