UH01 Nireco | ULTRASONIC SENSOR

Cảm biến siêu âm Nireco

Overview

The Ultrasonic Sensor UH01 / UH01A is designed especially to detect transparent film and photosensitive material in EPC(Edge Position Control)system.

It can detect the edge of a web with high accuracy, not affected by irregularities in the coating near the edge of transparent film and printed patterns, which is conventionally impossible by optical sensors. Combined with Nireco,s controller, an electrical EPC system and electro-hydraulic EPC system can be constructed. The UH01A is a version of our UH01 ultrasonic sensor with a longer internal length(the distance from the sensor center position to the inner side of the casing). Internal lengths of 200mm, 300mm, 400mm and 500mm are available. The internal length of the UH01 is 60mm (fixed).

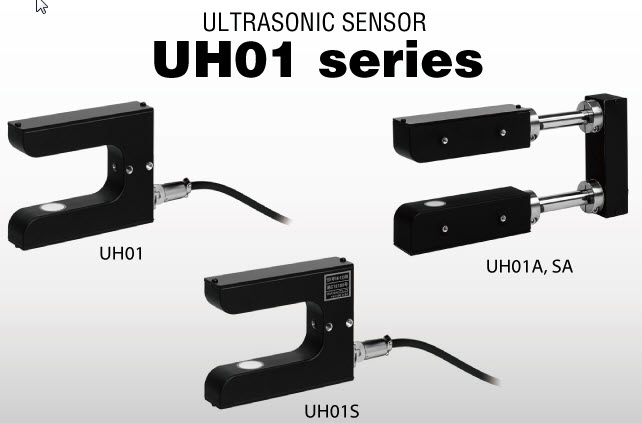

Cảm biến siêu âm UH01 Nireco - Đại lý phân phối thiết bị Nireco tại Việt Nam

Specifications

UH01	UH01A	UH01S	UH01SA
Sensor gap	48mm
Effective detection length	8mm
Frequency response	200Hz
Sensor output	Hi mode	When fully closed 0V,
	When fully closed 0V, When fully opened +5V DC	When fully opened +300mV DC
	Lo mode
	When fully closed 0mV, When fully opened +300mV DC
	Resistance load of at least 2kΩ
Power supply	DC＋15V(100mA)	DC +7 to +12V(70mA)
	DC－15V(50mA)
Ambient humidity	35 to 85%RH (no condensation)
Ambient mperature	0 to +50℃
Mass	0.36kg
