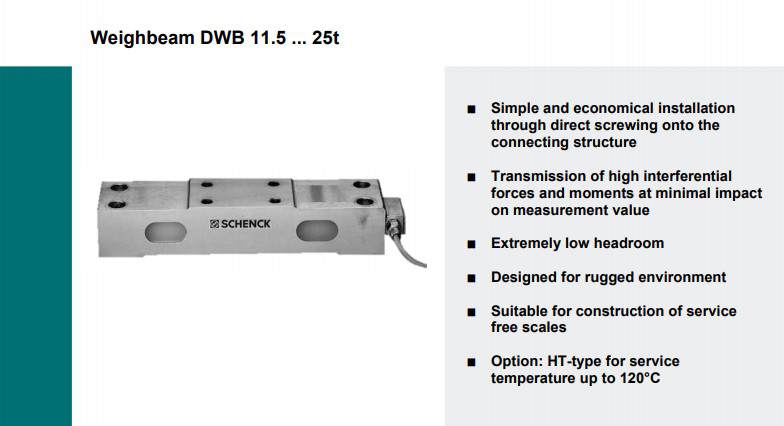

Weighbeam DWB 11.5 … 25t Schenck Việt nam

Thông tin sản phẩm hãng: SCHENCK

Thông tin sản phẩm tại Việt Nam: SCHENK VIETNAM

• Simple and economical installation through direct screwing onto the connecting structure
• Transmission of high interferential forces and moments at minimal impact on measurement value
• Extremely low headroom %
• Designed for rugged environment
• Suitable for construction of service free scales
• Option: HT-type for service temperature up to 120°C

		DWB 11.5 t			DWB 15 t			DWB 25 t	Reference
Rated capacity	Ln	11.5 t				15 t		25 t
Limit load (with Lq = 0.15xLn)	LI	23 t				26 t		35 t
Rupture load (with Lq = 0.15xLn)	Ld	35 t				38 t		40 t
Max. admissible side load	Lqmax	15 t				18 t		25 t
Sensitivity	Cn	0.90 mV/V			1.16 mV/V			1.40 mV/V	Ln
Combined error	Fcomb			±0.3%					Cn
Creep (30 m)	Fcr			± 0.05 %					Cn
Input resistance	Re	378 Ω			378 Ω			756 Ω	Tr
Output resistance	Ra	350 Ω			350 Ω			700 Ω	Tr
Ref. supply voltage	Usref					10V
Max. supply voltage	Usmax	18V				18V		36V
Nominal temperature range	Btn			– 10°C to + 40°C
Service temperature range	Btu	– 15°C to + 80°C (HT quality + 120°C)
Reference temperature	Tr				+ 22°C
Storage temperature range	Bts	– 30°C to + 85°C ( HT quality + 120°C)
Temperature effect on zero signal	TKo	± 0.1% / 10K ( HT quality: ± 0.05%)							Cn in Btu
Temperature effect on sensitivity	TKc	± 0.07% / 10K ( HT quality: ± 0.05%)
Dead weight	me	18kg				18kg		18kg
Corrosion protection			hot dip galvanized
Protection class					IP 67
Cable specification		silicone RAL 7000 (grey)
		Ø 6.5mm x 15m – 30°C to + 150°C
		black	: input			+ (82) / blue : input   – (81)
Colour code		red	: output			+ (28) / white : output – (27)
		green-yellow	: screening

Cảm biến loadcell Schenck process DWB 11.5, DWB 25 t

DWB 25 t Weighbeam LoadcellSchenck process Việt Nam



Variants	Order No.
DWB 11.5 t	D 703 100.01
DWB 15 t	D 703 100.02
DWB 25 t	D 704 280.03

DWB 11.5 t HT

D 703 100.04

DWB 25 t HT

D 704 280.05

ứng dụng của sản phẩm:

Silo and hopper scales

Crane scales

Rail weighbridges

Scrap bucket, roller train, and tundish scales

Platform scales

Đặc điểm, tính năng:

High degree of reliability and availability

Virtually impervious to shock loads and unavoidable side forces

No need for additional tie-rods and hold-downs

Design, installation and operation are extremely simple and cost-effective thanks to the absence of mounting elements.

• Flexible solution for many and varied applications
• Highly accurate weighing in any environment
• Easy installation, absolutely no maintenance
• Savings through reduced structural steel costs
• Rated load: 11,5 t – 800 t
• Accuracy classifications: combined error from 0.1% to 0,03 % (OIML class C2, legal-for-trade)

Loadcell DWB 25 t hãng Schenck Việt Nam

SENSiQ® WB Weigh Beam
The standard for tough tasks especially in the steel segment. Available from 11,5t to 800 t capacity. Reaches an accuracy of up to 0,1% combined error. There is also a high temperature version available up to 180°C. A a round version is also available.

Weigh Disc
The flat, more accurate and even better protected alternative to the weighbeam. Reaches an accuracy of 0,07% combined error, is suitable in special version up to 200°C and has a very low height profile.

Railtec Sensors
Created for very accurate measuring results (up to C2 legal for trade) in the harsh environment of a rail track and industry costumer with track system. Weigh Disc WDI and Weighbeam DMR are used in our MULTIRAIL products.

Measuring Eye
If it is not physically possible or is not cost effective to include weighing equipment under or around a structure, then our measuring eye is an alternative. This very small sensor can be placed directly into the structure and measures precise any tension. Depending on the structure and the position of the measuring eye it is possible to measure weights e.g. in a hopper with an accuracy of up to 0,5%.

Radial Force Transducer
If it is required to measure the load on an axle, such as with crane scales, this is a solid and very accurate solution. It measures in the axle mount with an accuracy up to 0,1%. Dimension of the axle hole can be adopted individually.

Measuring Axis
Sometimes it is better to replace the axle itself with a measuring axle instead of measuring within the mount. Here we have some standard sizes available but we can also create any dimension that is required.

Plate thickness “B”: Plate thickness depends on total construction stiffness. Connecting surfaces plate thickness must be at least 40% of weighbeam height

Surface quality “C”: The requisite mean rough value of connecting surfaces is around 6.3µm

Planeness “D”: The maximum admissible tolerance of each contact surface is 0.05 mm

Construction

Low and compact design

Galvanized surface

Protected to IP 67

Đại lý Schenck process Việt Nam

The original, proven over more than 30 years, optimized to the latest state of technology

Expanded to an operating temperature from -40 °C … 180 °C

High precision with a maximum combined error of ±0.07 % across the entire temperature range

Extremely robust and maintenance-free, IP68  6-wire circuit

Integrated sensor for temperature monitoring and compensation, and integrated overvoltage protection

Separate installation of the connecting cable through plug connection on the Weighbeam, also available as hinged plug outlet

Thiết kế, cài đặt và vận hành cực kỳ đơn giản và tiết kiệm chi phí nhờ không có các yếu tố lắp đặt.

• Giải pháp linh hoạt cho nhiều ứng dụng đa dạng
• Cân chính xác cao trong mọi môi trường
• Cài đặt dễ dàng, hoàn toàn không cần bảo trì
• Tiết kiệm thông qua giảm chi phí kết cấu thép
• Tải định mức: 11,5 t – 800 t
• Phân loại độ chính xác: lỗi kết hợp từ 0,1% đến 0,03% ( lớp OIML C2, hợp pháp cho giao dịch)

SENSiQ® WB Cân trọng lượng
Tiêu chuẩn cho các nhiệm vụ khó khăn đặc biệt là trong phân khúc thép. Có sẵn từ 11,5t đến 800 tấn công suất. Đạt độ chính xác lên tới 0,1% lỗi kết hợp. Ngoài ra còn có một phiên bản nhiệt độ cao có sẵn lên tới 180 ° C. Một phiên bản tròn cũng có sẵn.

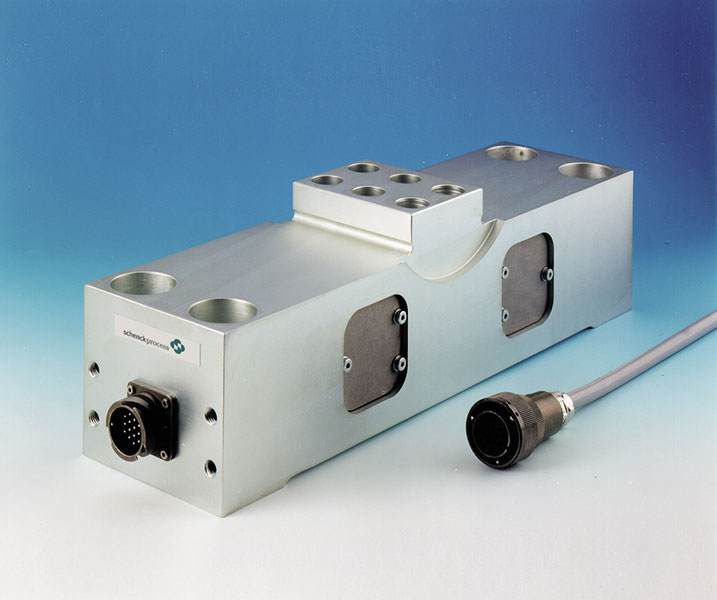

Weighbeam DWB 11.5 Loadcell Schenck process Vietnam
