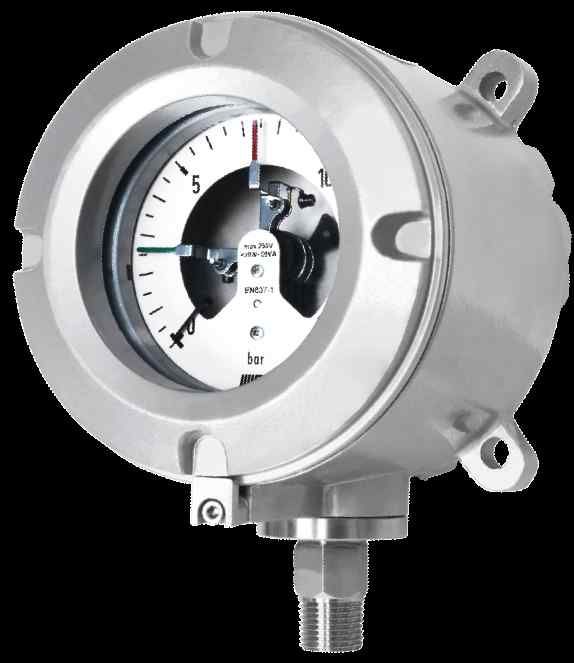

P991, P990, P980 WISE- đồng hồ đo áp suất chống cháy nổ Wise

Đồng hồ đo áp suất chống cháy nổ P991, P990, P980, P953 Wise Việt Nam, đại lý Wise Việt nam, hãng Wise tại Việt Nam

Chi tiết sản phẩm

Đồng hồ đo áp suất chống cháy nổ Wise Việt Nam

Nominal diameter	100 mm
Accuracy	Indicator : ±1.0 % of full scale Alarm setting : ±3.0 % of full scale
Repeatability	±1.0 % of adjustable range (Micro contact type)
Adjustable range (MPa, kPa, bar)	-0.1 ~ 0 to 0 ~ 2 MPa 0 ~ 0.1 to 0 ~ 35 MPa
Working temperature	Ambient : -20 ~ 65 °C Fluid : Max. 100 °C
Temperature effect	Accuracy at temperature above and below the reference temperature (20 °C) will be effected by approximately ±0.4 % per 10 °C of full scale

Standard features

Pressure connection	Stainless steel (316SS)
Element	C type bourdon tube Stainless steel (316SS)
Case and cover	ALDC12.1 Silver gray painted aluminium Surface mounting
Contact	■ Micro contact One SPDT or Two SPDT ■ Electrical contact One SPST or Two SPST
Contact rating	■ Micro contact type AC 125 V, 5 A / 250 V, 3 A and DC 30 V, 4 A DC 125 V, 0.4 A for resistance load AC 125 V, 3 A / 250 V, 2 A and DC 30 V, 3 A DC 125 V, 0.05 A for inductive load ■ Electrical contact AC 250 V, 1.0 A
Conduit connection	½” NPT(F), Lead wire length (Max. 1 m) * Refer to “Swtiching element” for wiring diagram.
Process connection	⅜”, ½” PT, NPT and PF Setpoint adjustment
Certificates	KCS Ex d IIC T6
Option	Explosion proof type cable gland ● 304SS ● ½” NPT(M)
