Car bảo vệ động cơ – máy móc Meggitt Vibro-Meter

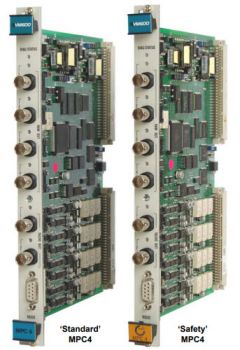

Machinery protection card Type MPC4

VM600 MPC4

High-quality, high-reliability machinery protection card – with SIL 2 approval – for VM600 rack-based machinery monitoring systems. The MPC4 card provides 4 dynamic channels and 2 tachometer (speed) channels, all of which are independently configurable. An MPC4 machinery protection card is installed in the front of a VM600 ABE04x rack and requires an IOC4T card to form a card pair.

Features

• 4 dynamic channels and 2 tachometer channels
• 2 processed outputs per dynamic channel and 1 processed output per dual-channel (2 per MPC4), 1 processed output per tacho channel
• Highly configurable card supports all measurements required by machinery protection applications, such as relative and/or absolute vibration
• Highly integrated card pair (with IOC4T) includes sensor power supplies, buffered outputs, DC outputs, relays and serial communications interfaces
• Designed for operation with the VM600 MPSx software

Vibro Meter VM600 MPC4 200-510-074-113 Machine Protection Card

Vibro Meter VM600 MPC4 200-510-074-113 Machine Protection Card

Vibro Meter VM600 MPC4 200-510-074-113 Machine Protection Card

VIBRO METER 200-566-000-112

VIBRO METER 200-530-SSS-HHH

VIBRO METER 244-130-000-204

VIBRO METER 200-565-000-013T

VIBRO METER 200-582-200-013

VIBRO METER 830-105-000-201

VIBRO METER 200-530-SSS-HHH
