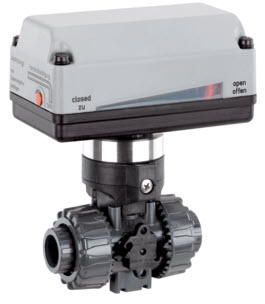

The 2/2 and/or 3/2-way GEMÜ 723 ball valve is motorized. It has a plastic actuator housing. A manual override and an optical position indicator are integrated as standard. The seat seal is made of PTFE.
Technical specifications
- Connection: Flange; Solvent cement socket; Union end
- Actuator: Motorized
- Body material: ABS; PP-H; PVC-C; PVC-U; PVDF
- Conformities: EAC
- Max. operating pressure: 16 bar
- Max. media temperature: 100 ° C
- Min. media temperature: -20 ° C
- Nominal sizes: DN 10 (3/8”); DN 15 (1/2”); DN 20 (3/4”); DN 25 (1”); DN 32 (1 1/4”); DN 40 (1 1/2”); DN 50 (2”); DN 65 (2 1/2”); DN 80 (3”); DN 100 (4”)
- Control valve
