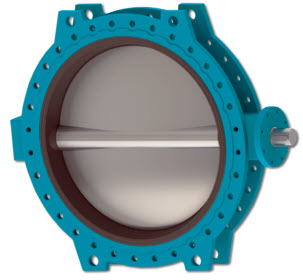

The GEMÜ C480 soft seated butterfly valve has a bare shaft. The butterfly valve is available in nominal sizes DN 700 -1600 and in various body versions such as Wafer, Lug and U section.
Features GEMU C480
- Simple installation
- Low torques
- Modular construction
- Advanced seal design – even for larger diameters
Technical specifications GEMU C480
- Connection: Flange
- Actuator: With bare shaft
- Body material: EN-GJS-400-15
- Conformities: ; ACS
- Max. operating pressure: 16 bar
- Max. media temperature: 70 ° C
- Min. media temperature: -10 ° C
- Nominal sizes: DN 700; DN 800; DN 900; DN 1000; DN 1100; DN 1200; DN 1300; DN 1400; DN 1600
