Thiết bị đo nhiệt độ TR210 Finetek Việt Nam

TR220 Temperature transmitter Finetek Việt Nam

Đặc điểm kĩ thuật của sản phẩm:

• Supply Voltage: Loop Power 18~32 Vdc
• DCV Input: 0~500 mV/ 0~1V/ 0~5V/ 0~10V/ 0~20V
• DCA Input: 0~20 mA/ 4~20 mA
• Thermocouple Input: K / J / T / E / R / S / B / N
• RTD/ Resistance Input: PT100/0~400W
• Analog Output: 4~20 mA (Loop Power)
• Ambient temperature: -20~60°C
• Communication: HART
• Galvanic Isolation: 1500V

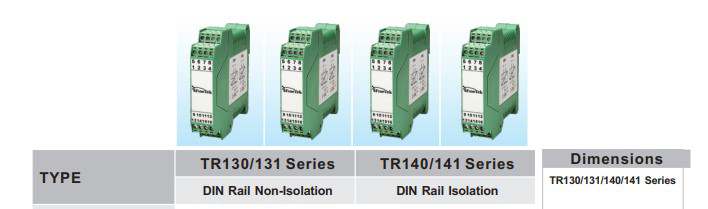

Một số model TR130, TR131, TR140, TR141 Finetek

Sản phẩm hãng: FINETEK

Sản phẩm tại Việt Nam: FINETEK Việt Nam

Đặc tính kĩ thuật:

• Isolation Voltage: 1500 Vac
• Loop Power 12~32Vdc
• Linear current output
• LCD display with 3 press buttons
• Universal type with multi-signal input
• With communication port for programming
• Optional: HART

Webbed wheel flowmeter mainly by using the principle of rotating blades to measure flow. Mainly by the middle of the leaf blade and the leaf blade capacity calculated. In the structural design of the product, Leaf blade need to be able to satisfy a sufficient change in the linear velocity 0~10m/s. Its apparent volume miniaturization design. Within the range of performance requirements, It can not produce a total shock to let  the speed is reduced.
The sensor requires actual measurement to get real flow signals, Elimination of bearing、Axial friction coefficient error and the leaf blade resistance error etc. Calculate the K value read. The company flow test equipment, Testable 10mm~300mm mouth Diameter flow sensor.

TR160 Cảm biến nhiệt độ Finetek

Finetek Việt Nam

The industrial flow measurement is becoming more important all the time. We create products for both standard applications and applications that are demanding, requiring custom solutions. So you can choose the flow meter best suited to your process needs

Thiết bị đo nhiệt độ TR Series hãng Finetek
