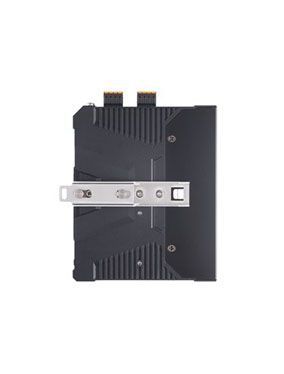

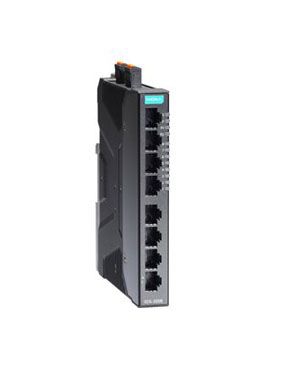

Thiết bị chuyển mạng Ethernet 8 cổng công nghiệp SDS-3008 MOXA, Công tắc chuyển mạng công nghiệp Ethernet SDS-3008 MOXA, Swith chuyển mạng Ethernet SDS-3008 MOXA.

Tính năng và tiện ích của Ethernet SDS-3008 MOXA

• Compact and flexible housing design to fit into confined spaces
• EtherNet/IP, PROFINET, and Modbus TCP industrial protocols supported for easy integration and monitoring in automation HMI/SCADA systems.
• Web-based GUI for easy device configuration and management
• Multi-language web GUI: English, Traditional Chinese, Simplified Chinese, Japanese, German, and French
• Supports RSTP/STP for network redundancy
• Security features based on IEC 62443

Ngoài ra Ethernet SDS-3008 MOXA còn có thêm những tính năng và tiên ích sau:

• Supports IEEE 802.1D-2004 and IEEE 802.1w STP/RSTP for rapid network redundancy
• IEEE 802.1Q VLAN to ease network planning
• Supports the ABC-02-USB automatic backup configurator for quick event log and configuration backup. Can also enable quick device switch over and firmware upgrade
• Automatic warning by exception through relay output
• Unused port lock, SNMPv3 and HTTPS to enhance network security
• Role-based account management for self-defined administration and / or user accounts
• Local log and the ability to export inventory files ease inventor management

Thông số kỹ thuật của Swith chuyển mạng Ethernet SDS-3008 MOXA

Giao diện đầu vào / đầu ra

• Alarm Contact Channels: 1, Relay output with current carrying capacity of 1 A @ 24 VDC
• Buttons: Reset button
• Digital Input Channels: 1
• Digital Inputs: +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA

Giao diện Ethernet

• 10/100BaseT(X) Ports (RJ45 connector) 8:Auto negotiation speedFull/Half duplex modeAuto MDI/MDI-X connection
• Standards

1.  IEEE 802.3 for 10BaseT
2. IEEE 802.3u for 100BaseT(X)
3. IEEE 802.3x for flow control
4. IEEE 802.1D-2004 for Spanning Tree Protocol
5. IEEE 802.1w for Rapid Spanning Tree Protocol
6. IEEE 802.1Q for VLAN Tagging

Thông số nguồn điện

• Connection 2 removable 4-contact terminal block(s)
• Input Voltage 12/24/48/-48 VDC, Redundant dual inputs
• Operating Voltage 9.6 to 60 VDC
• Input Current 0.55 A @ 24 VDC
• Overload Current Protection Supported
• Reverse Polarity Protection Supported
