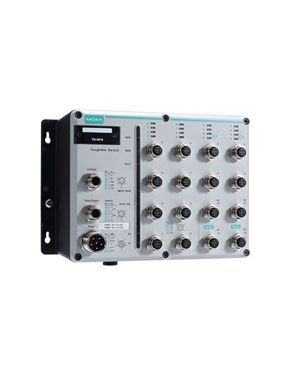

Bộ định tuyến công nghiệp 16 cổng NAT, Thiết bị định tuyếnTN-5900 MOXA, Swith định tuyến TN-5900 MOXA, Thiết bị định tuyến MOXA.

Các tính năng và lợi ích của Routers TN-5900 MOXA

• Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks

• NAT makes IP management easier, since end devices in different carriages can use the same IP addresses

• Leading EN 50155 Ethernet router for rolling stock applications

• Turbo Ring and RSTP/STP for network redundancy

• IGMP V1/V2 snooping for filtering multicast traffic

• IEEE 802.1Q VLAN to ease network planning

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to improve reliability

• Panel mounting or DIN-rail mounting installation capability

• SNMPv3, HTTPS, and SSH to enhance network security

• SNMP v1/v2c/v3 for different levels of network management

• Port mirroring for online debugging

• Automatic warning by exception through email and relay output

• Line-swap fast recovery

• Automatic recovery of connected device’s IP addresses

• LLDP for automatic topology discovery in network management software

• Configurable by web browser, Telnet/serial console, and CLI Windows utility

• Designed for rolling stock backbone networks
• Dual bypass relay
• Isolated power input range from 24 to 110 VDC
• Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
• -40 to 75°C operating temperature range
• Turbo Ring and RSTP/STP for network redundancy

Thông số kỹ thuật

Input/Output

• Interface Alarm Contact Channels: 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 12
• 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay): 4

Standards

• IEEE 802.1D-2004 for Spanning Tree Protocol
• IEEE 802.1p for Class of Service
• IEEE 802.1Q for VLAN Tagging
• IEEE 802.1w for Rapid Spanning Tree Protocol
• IEEE 802.3 for 10BaseT
• IEEE 802.3ad for Static Port Trunk
• IEEE 802.3u for 100BaseT(X)
• IEEE 802.3x for flow control

Ethernet Software Features

• Configuration Options: Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/ SSH, Web Browser (HTTP/HTTPS), Windows Utility
• Filter: 802.1Q, IGMP v1/v2, Static Multicast
• Management: Back Pressure Flow Control, DHCP server, Flow control, HTTP, IPv4, LLDP, Port Mirror,
  QoS/CoS/ToS, RARP, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Account Management
• MIB: RFC1213
• Redundancy Protocols Link Aggregation, RSTP, Static Port Trunk, STP, Turbo Ring v2
• Routing Redundancy: VRRP
• Security: Broadcast storm protection ², HTTPS/SSL, Local Account Accessibility, TACACS+², Port Lock, SSH
• Time Management: NTP Server/Client, SNTP
• Unicast Routing: Static Route, RIPV1/V2

TTN – Đại lý MOXA Việt Nam chuyển cung cấp các sản phẩm & thiết bị tự động hóa trong các ngành như: Xi măng, Bao bì, Gang – Thép, Nước giải khát..vv. Hãy liên hệ với chung tôi để được báo giá tốt nhất.
