Tay trang điều khiển V64 Gesssmann
Tay trang cẩu trục

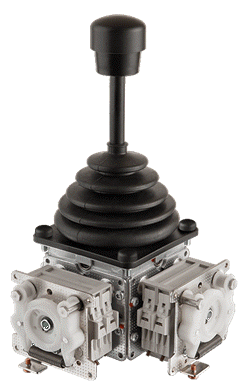

Multi-axis Controller V6/VV6
V64 2-axis
The multi-axis controller V6 / VV6 is available in either single-axis or multi-axis options and is a robust controller used commonly in crane and hoisting applications. The modular design and many possibilities of combination with our handles enables the switching device to be used universally. The V6 / VV6 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.
Technical data
Mechanical life V6: 10 million operating cycles
Mechanical life VV6: 20 million operating cycles
Operation temperature: -40°C to +85°C
Degree of protection: up to IP54 front
| Code: V64B1DD-01ZC+01ZC |
| Multi-axis controller V64 right |
| palm grip B1 /1 TOP+ 1 SIDE |
| direction 5-6 spring return 1-0-1 /with 1 OEC |
| direction 7-8 spring return 1-0-1 /With 1 OEC |
| including Cable with connector |
| Code: V64B1-01ZC+02Z |
| Multi-axis controller V64 |
| palm grip B1 |
| 2 contacts 2A 250VAC15 |
| 1 OEC 2-4-1 |
| direction 5-6 spring return 1-0-1 |
| direction 7-8 spring return 1-0-1 |
| 4 contacts 2A 250VAC15 |
| open IP 00 |
| Code: V64B1-01ZC+01ZC |
| Multi-axis controller V64 |
| palm grip B1 |
| direction 1-2 spring return 1-0-1 |
| 2 contacts 2A 250VAC15 |
| 1 OEC 2-4-1 |
| direction 3-4 spring return 1-0-1 |
| 4 contacts 2A 250VAC15 |
| open IP 00 |
| Code: V64RMN-02ZC-02ZC |
| Multi-axis controller V64 right |
| mechanical zero interlock |
| axis 1 / spring reutrn 1-0-1 |
| 4 contacts 2A 250V AC15 ,1 OEC 2-1-1 |
| axis 2 / spring return 1-0-1 |
| 4 contacts 2A 250V AC15 ,1 OEC 2-1-1 |
| Code: V64LMN-02ZC-02ZC |
| Multi-axis controller V64 right |
| mechanical zero interlock |
| axis 1 / spring reutrn 1-0-1 |
| 4 contacts 2A 250V AC15 ,1 OEC 2-1-1 |
| axis 2 / spring return 1-0-1 |
| 4 contacts 2A 250V AC15 |
| Code: V64RB1DD-01ZC+01ZC |
| Multi-axis controller V64 right |
| wiring diagram: EP/333 |
| 1 push button top |
| 1 push button side |
| direction 5-6 spring return 1-0-1 |
| WITH OEC- 2-4-1 |
| direction 7-8 spring return 1-0-1 |
| WITH OEC- 2-4-1 |
| Code: V64LB52D-01ZC+01ZC |
| Multi-axis controller V64 right |
| Code: V64LB52D |
| Multi-axis controller V64 right |
| Code: V64L S5M 03Z 03Z A110 |
| Multi-axis controller V64 right |
| Code: V64.1RB35D-2ZC |
| Multi-axis controller V64 right |
| Code: V64LB36D-2ZC+2ZC |
| Multi-axis controller V64 right |
| Code: V64B1DD-01ZP+01ZP |
| Multi-axis controller V64 right |
| Code: V64LB52D |
| Multi-axis controller V64 right |
| Code: V64B1-01ZP+02Z |
| Multi-axis controller V64 right |
| Code: V64B1DD-01zp+01zp |
| (V64LB52D-01ZC+01ZC-A980C041) |
| Multi-axis controller V64 right |
| Nhà cung cấp | Đại lý Gessmann tại Việt Nam |
|---|---|
| Xuất xứ | Đức – Germany |
