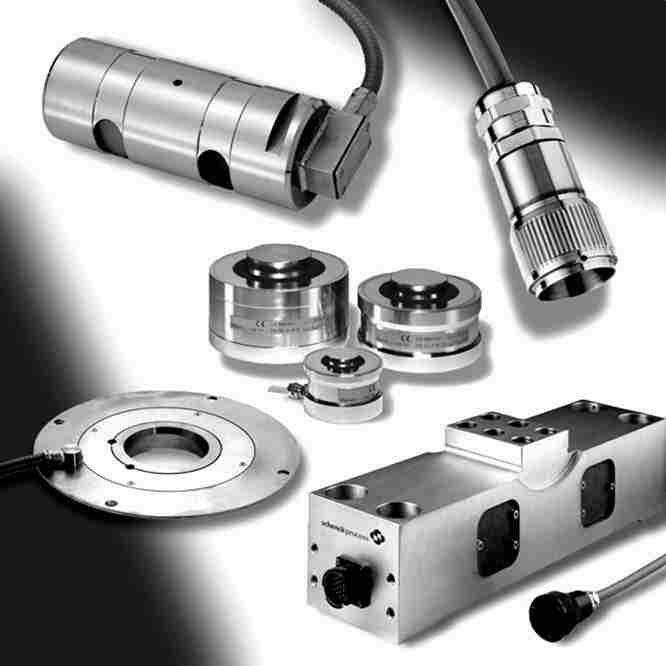

RTB 0.5T LOADCELL SCHENCK PROCESS VIỆT NAM

D726178.02 Schenck process việt nam, RTN Schenck, D724754.02 schenck, D 726 370.31 loadcell schenck process, loadcell schenck process, Cảm biến khối lượng D 725 408.01 schenck process, V041087.B01 schenck process vietnam

0877.105.430

cong@ttnvietnam.vn

Liên hệ

Chi tiết sản phẩm

LOADCELL SCHENCK PROCESS

Mục lục sản phẩm

1. RTN Loadcell Schenck process

2. RTB Cảm biến khối lượng Schenck process

3. VBB 0.5T Loadcell schenck

1. RTN Loadcell Schenck process

Variants		Accuracy class
RTN 0150T Schenck process	0.05	C3	C5 / C4 Mi 7.5
RTN 1 t Schenck process Việt Nam	D726173.04	D726173.02	D726173.10
RTN 2.2 t Schenck process Germany	D726174.04	D726174.02	D726174.10
RTN 4.7 t Loadcell Schenck	D726175.04	D726175.02	D726175.10
RTN 10T Cảm biến tải trọng Schenck	D726176.04	D726176.02	D726176.10
RTN 15T Nhà phân phối Schenck Việt Nam	D726177.04	D726177.02	D726177.10
RTN 22T Cảm biến khối lượng Schenck process	D724781.04	D724781.02	D724781.10
RTN 33T Schenck Việt Nam	D724754.04	D724754.02	D724754.10
RTN 47T Load cell Schenck	D724782.04	D724782.02	D724782.10
RTN 68T Cân định lượng Schenck process	D724783.04	D724783.02	D724783.10
RTN 68T Cân định lượng Schenck process	D724783.04	D724783.02
RTN 100 t	D724784.04	D724784.02	D724784.10
RTN 150 t	D726178.04	D726178.02
RTN 220 t	D726179.04	D726179.02
RTN 330 t	D726180.04	D726180.02
RTN 470 t Schenck process	D726181.04	D726181.02

2. RTB Cảm biến khối lượng Schenck process

Design	Material number
RTB 0.5T Scheck
VDW 33t schenck	V080434.B01
C3 without mounting parts	V080434.B01
C3 without mounting parts

VDW 44t,	V080434.B02
C3 without mounting parts	V080434.B02
C3 without mounting parts
	V041087.B15
Set of mounting parts
(2 thrust pieces)	V080494.B01
for load cell VDW

RTB 0.13T Loacell Schenck process Việt Nam

[t]	C3	C5
0.13	V041085.B01	phân phối Schenck process
0.25	V041086.B01	V041086.B11
0.50	V041087.B01	V041087.B05 schenck process
0.25 MR	V041086.B07	V041086.B11
0.50 MR	V041087.B07	V041087.B11

3. VBB 0.5T Loadcell Schenck

Variants	Order No.	Ex-Variants	Order No. 2GD	Order No. 2D/3G
Load Cells	Order No.	Load Cells	Order No. 2GD	Order No. 2D/3G
Load Cells		Load Cells
VBB 5 kg D1	D 725 417.01
VBB 10 kg D1	D 725 417.02
VBB 10 kg СЗ	D 725 419.02	VBB 10 kg СЗ „Ex”	D 725 419.32	D 725 419.42
VBB 20 kg D1	D 725 417.03
VBB 20 kg C3	D 725 419.03	VBB 20 kg C3 „Ex”	D 725 419.33	D 725 419.43
VBB 50 kg D1	D 725 417.04
VBB 50 kg C3	D 725 419.04	VBB 50 kg C3 „Ex”	D 725 419.34	D 725 419.44
VBB 0.1 t D1	D 725 409.01	VBB 0,1 t D1 „Ex”	D 725 409.61	D 725 409.41
VBB 0.1 t C3	D 725 409.04	VBB 0,1 t C3 „Ex”	D 725 409.64	D 725 409.44
VBB 0.1 t C4	D 726 370.01	VBB 0,1 t C4 „Ex”	D 726 370.31	D 726 370.41
VBB 0.2 t D1	D 725 409.02	VBB 0,2 t D1 „Ex”	D 725 409.62	D 725 409.42
VBB 0.2 t C3	D 725 409.05	VBB 0,2 t C3 „Ex”	D 725 409.65	D 725 409.45
VBB 0.2 t C4	D 726 370.02	VBB 0,2 t C4 „Ex”	D 726 370.32	D 726 370.42
VBB 0.2 t C6	D 726 370.04	VBB 0,2 t C6 „Ex”	D 726 370.34	D 726 370.44
VBB 0.5 t D1	D 725 409.03	VBB 0,5 t D1 „Ex”	D 725 409.63	D 725 409.43
VBB 0.5 t C3	D 725 409.06	VBB 0,5 t C3 „Ex”	D 725 409.66	D 725 409.46
VBB 0.5 t C4	D 726 370.03	VBB 0,5 t C4 „Ex”	D 726 370.33	D 726 370.43
Variants Elastomer Mounts		Order No.
VEB 5 kg – 0.2 t		D 725 408.01
VEB 0.5 t		D 725 408.02

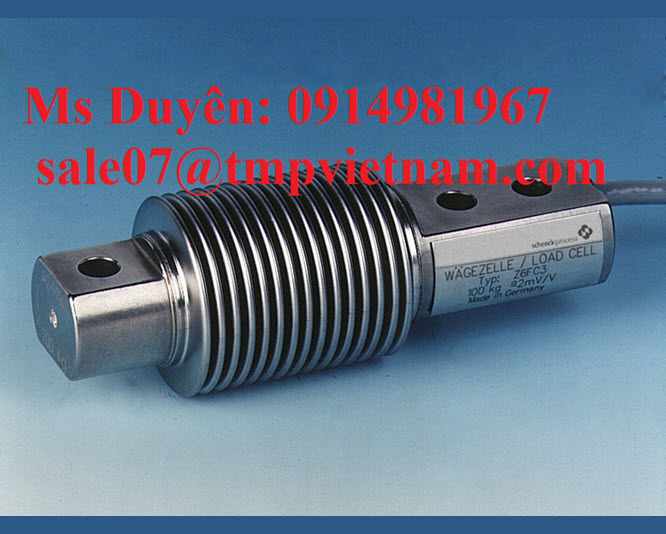

VBB loadcell schenck process

VBB 5kg loadcell schenck process

Type	Material of metal parts	Height	Overall height H + 5	Material number
SEM 1 t … 4.7 t	1.4301	34	132	D733119.01
SEM 10 t … 22 t	1.4301	34	164	D733119.02
SEM 33 t	S235, galvanised	34	202	D733119.03
SEM 47 t	S235, galvanised	62	260	V081425.B01
SEM 68 t	S235, galvanised	72	292	V081425.B02
SEM 100 t	S235, galvanised	82	321	V081425.B03
SEM 150 t	S235, galvanised	97	417	V081425.B04
SEM 220 t	S235, galvanised	112	485	V081425.B05
SEM 330 t	S235, galvanised	132	559	V081425.B06
SEM 470 t	S235, galvanised	157	677	V081425.B07
SSM 1 t … 4.7 t	1.4301	22	138	V020696.B01
SSM 10 t … 22 t	1.4301	22	172	V020696.B02
SSM 33 t	S235, galvanised	22	214	V020696.B05
SSM 47 t	S235, galvanised	52	305	V024275.B01
