Van Xoay Định Lượng Dùng Cho Thực Phẩm

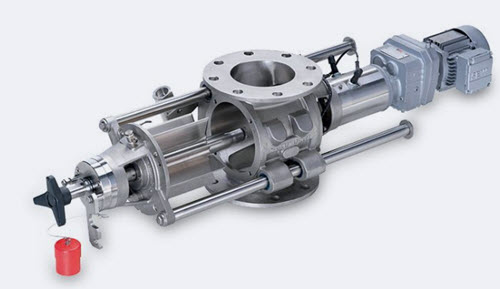

Rotary Airlock Valve

AL MZC DMN Westinghouse | AXL MZC DMN Westinghouse

Product Information

The MZC valves are supplied in 316 stainless steel and cast iron. Variations such as chrome plating and Tungsten coating are equally available.

The standard rotor has 9 blades. Various rotor configurations are available, such as adjustable or fixed blades, reduced capacity, scalloped fixed vaned, end disc etc. The end covers have outboard bearing, lubricated and sealed for life. Shaft seals are available with gland packing or lipseal and optional air purge.

The standard models are suitable for temperatures up to +150°C and pressure up to 2 barg. ATEX Autonomous Protective System (APS) certified configurations are available up to 10 barg.

Specifications

• Supporting bars for easy removal of rotor and end cover
• Narrow, flexible, and maintenance-friendly construction with direct drive
• Hygienic, USDA Dairy accepted versions available
• EC1935/2004 conformity available
• Increased operator safety
• ATEX 2014/34/EU certification available
• ATEX Autonomous Protective System (APS) certification available

Available sizes and capacity

*Capacity per revolution at 100% filling
