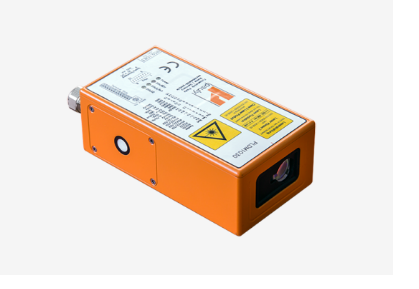

Cảm biến đo khoảng cách bằng Laser Fotoelektrik Pauly Việt Nam

Thông số máy PLDM1030 (4901) Fotoelektrik Pauly

+ Description

Laser distance sensor, versatile for z. B. object recognition, distance measurement and positioning tasks of moving vehicles

Typical measurement accuracy

+ – 3.0 mm at 2 sigma; + – 1.0 mm at 2 sigma (type PLDM1010)

Typical repeatability

+ – 0.5 mm at 2 sigma; + – 0.4 mm at 2 sigma (type PLDM1010)

reach

0.05 m to approx. 65 m on natural surfaces; 0.5 m to 500 m on orange, reflective target board

casing

Al casting

Dimensions

approx. 160 x 54 x 80 [mm] (L x H x W); without cable gland and connector Sub D

protection

IP65

Connectivity technology

Terminals or 15-pin connector Sub D

transmitted light

Laser diode 650 nm, visible

radiant power

Max. 0.95 W; Class 2 (DIN EN 60825-1: 2008-05)

Beam cross section

4 mm at 5 m; 8 mm at 10 m; 15 mm at 30 m

measuring time

Single Mode: Typically 0.3 to 4 s; Tracking mode: typically 0.004 to 4 s; the true measuring time depends on the selected operating mode

care

9 VDC to 30 VDC / 600 mA

power indicator

Green LED

switch display

Red and yellow LEDs

control output

1 x serial asynchronous interface RS232; 1 x serial asynchronous interface RS422; 1 x SSI; 1 x programmable analog output 0/4 to 20 mA; 2 x programmable digital outputs; 1 x programmable digital input; 1 x digital output for error status message; Optional: fieldbus (Profibus)

operating temperatur

-10 ° C to + 50 ° C

Special / optional features

Special assembly aids are available, eg. B .: Type JFBEC, ADPLDM1030SS1 .or. For oven applications, the oven window type O2004 * 09 with matching, diagonally enclosed pane in the quick-change window



Ngoài ra còn có dòng máy tương tự PLDM1030 (4901) Fotoelektrik Pauly

Cảm biến đo khoảng cách bằng Laser

PLDM1030H

Fotoelektrik Pauly Vietnam

PLDM1030 Cảm biến đo khoảng cách bằng Laser-Fotoelektrik Pauly
