Module Load Cell SENSiQ Schenck Process

Module Load Cell cân bồn

Module Load Cell cân silo

SENSiQ Secure Mount SSM Schenck Process

Maintenance-free complete solution with integrated hold-down and pendulum limit for various applications such as hopper, container or mixer scales. Withstands horizontal and lift-up forces of up to 20% of nominal load. Suitable for RTN, RTR/RTD and RTB. Also available in strengthened version as SENSiQ® Secure Mount – PLUS with 40% force resistance.

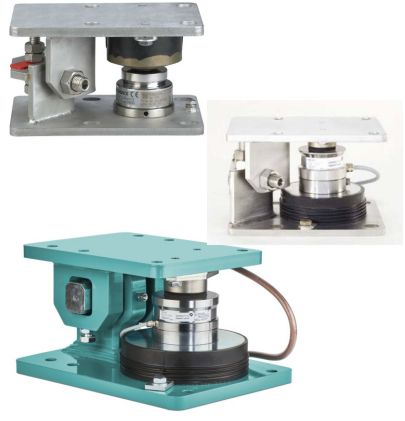

Accessories for load cell mount SENSiQ Secure Mount SSM Schenck Process

Module cho Load Cell từ 0.25 tấn đến 33 tấn

Module Loadcell SENSiQ Schenck Process | Module Loadcell Cân Bồn

Module cho Load Cell từ 47 tấn đến 470 tấn

Module Loadcell SENSiQ Schenck Process | Module Loadcell Cân Bồn

Type	Material of metal parts	Height	Overall height H + 5	Material number
SEM 1 t … 4.7 t	1.4301	34	132	D733119.01
SEM 10 t … 22 t	1.4301	34	164	D733119.02
SEM 33 t	S235, galvanised	34	202	D733119.03
SEM 47 t	S235, galvanised	62	260	V081425.B01
SEM 68 t	S235, galvanised	72	292	V081425.B02
SEM 100 t	S235, galvanised	82	321	V081425.B03
SEM 150 t	S235, galvanised	97	417	V081425.B04
SEM 220 t	S235, galvanised	112	485	V081425.B05
SEM 330 t	S235, galvanised	132	559	V081425.B06
SEM 470 t	S235, galvanised	157	677	V081425.B07
SSM 1 t … 4.7 t	1.4301	22	138	V020696.B01
SSM 10 t … 22 t	1.4301	22	172	V020696.B02
SSM 33 t	S235, galvanised	22	214	V020696.B05
SSM 47 t	S235, galvanised	52	305	V024275.B01

Type	Material	Height	A	B	C	Material number
SEM / SSM 1 t … 4.7 t	1.4301	15	140	100	M 12	D733120.06
SEM / SSM 1 t … 4.7 t	S235, galvanised	15	140	100	M 12	D733120.01
SEM / SSM 10 t … 22 t	1.4301	20	180	140	M 16	D733120.04
SEM / SSM 10 t … 22 t	S235, galvanised	20	180	140	M 16	D733120.02
SEM / SSM 33 t	S235, galvanised	25	240	200	M 20	D733120.03
