DP 52 | Dew point monitoring

Máy đo điểm sương cho máy sấy lạnh

The dew-point set is wired ready to plug in at the factory. The alarm values can be set freely. The dew point sensor FA 510 is extremely long-term stable and can be quickly and easily installed and removed under pressure via the screw-on measuring chamber incl. Quick coupling.

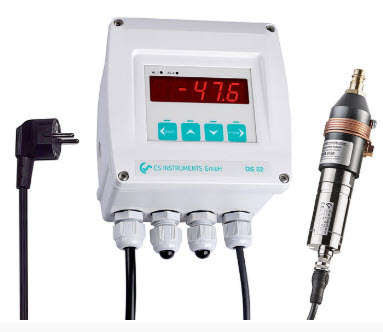

Dew point measurement DS 52-set for desiccant dryers

The measuring range of -80…20°Ctd makes the dew point set DS 52 with alarm the ideal dew point monitor with analogue output 4…20 mA.

The dew point sensor FA 510 is extremely long-term stable and can be installed and removed quickly and easily under pressure by means of the screwable measuring chamber including quick coupling. The dew point set is supplied ready for plug-in, i.e. everything is completely wired. The alarm values can be freely adjusted.

Special features of dew point measuring DS 52-Set for desiccant dryers

• System ready for plug-in: Everything completely wired
• No time-consuming studying of the instruction manual
• 2 alarm contacts (230 VAC, 3 A) pre- and main alarm freely adjustable
• 4…20 mA analogue output
• Option alarm unit: Buzzer and continuous red light

TECHNICAL DATA DISPLAY DS 52

• Dimension: 118 x 92 x 93 mm
• Display: LED red, 7 segments, height: 13 mm, 5 digits, 2 LED for alarm relay
• Keypad: 4 keys Input: 4…20 mA
• Power supply: 230 VAC, 50/60 Hz; Option: 24 VDC or 110 VAC 50/60 Hz
• Alarm outputs: 2 x relay output, changeover contact, 250 VAC, max. 3 A
• Operating temperature: -10…+60 °C (storage temperature -20°C…+80°C)
• Alarm thresholds: freely adjustable Hysteresis: 2 °Ctd
• Analog output: 4…20 mA = -80…20 Ctd or -20…50°Ctd
