DP 510 CS Instrument

Thiết bị đo điểm sương cầm tay

Applications:

Compressed air: Examination of refrigeration, membrane, adsorption dryers
Technical gases: Residual moisture measurement in gases such as N2, O2 etc.
Plastic industry: Examination of granulate dryers

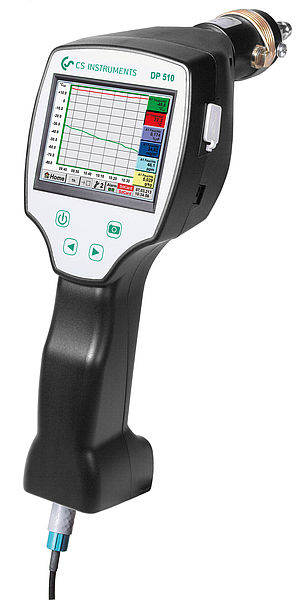

Máy đó điểm sương cầm tay DP 510 - Đại lý CS Instrument tại Việt Nam - CS Instrument Việt Nam

Special features:

Precise dew point measurement down to -80°Ctd
Quick response time
3.5“ graphic display / easy operation via touch screen
Integrated data logger for storage of the measured values
USB interface for reading out via USB stick
Calculates all necessary moisture parameters like g/m³, mg/m³, ppm V/V, g/kg, °Ctdatm
2nd freely assignable sensor input for third-party sensors (only DP 510) • International: Up to 8 languages selectable.

Oder code

DESCRIPTION	ORDER-NO.
Set DP 500 in a case – consisting of:	0600 0500
– Portable dew point meter DP 500 for compressed air and gases	0560 0500
– Mobile measuring chamber up to 16 bar	0699 4490
– Diffusion-tight PTFE hose with quick connector, length 1 m	0554 0003
– Power supply for DP 500/510	0554 0009
– Control and calibration set 11.3 % RH	0554 0002
– Quick-lock coupling	0530 1101
– Dry container for CS dew point sensors	0699 2500
– Transportation case (small) for DP 500	0554 6500

Set DP 510 in a case – consisting of:	0600 0510
– Mobile dew point meter DP 510 with one additorial input external sensors	0560 0510
– Mobile measuring chamber up to 16 bar	0699 4490
– Diffusion-tight PTFE hose with quick connector, length 1 m	0554 0003
– Power supply for DP 500/510	0554 0009
– Control and calibration set 11.3 % RH	0554 0002
– Quick-lock coupling	0530 1101
– Dry container for CS dew point sensors	0699 2500
– Transportation case (large) for DP 510 as well as other sensors	0554 6510

Furter options, not included in the set:
Option: „Mathematics calculation function“ for 4 freely selectable chan- nels, (virtual channels): addition,subtraction, division, multiplication	Z500 5107
Option: „Totalizer function for analogue signals“	Z500 5106
CS Basic – data evaluation graphically and in tabular form – reading of the measured data via USB or Ethernet, license for 2 workstations	0554 8040
Precision calibration at -40°Ctd or 3°Ctd with ISO certificate	0699 3396
Additional calibration point freely selectable in the range between -80…+20°Ctd	0700 7710
High pressure measuring chamber up to 350 bar	0699 3590
Measuring chamber for atmospheric dew point	0699 3690
Measuring chamber for granulate driers with minimum overpressure	0699 3490
Portable dew point meter DP 510 for compressed air and gases (high pressure version up to 350 bar)	0560 0512
Portable dew point meter DP 500 for compressed air and gases (high pressure version up to 350 bar)	0560 0501
