HS 075 FHM 010 Phanh đĩa thủy lực Ringspann Việt Nam

Brake Caliper HS 075 FHM spring activated – hydraulically released for wind turbines or conveyor systems

Ringspann Việt Nam

Đặc tính kĩ thuật của sản phẩm:

The brake saddle HS 075 FHM is a machine component used for the purpose of braking accelerated masses safely and reliably. The combination of brake saddle and brake disc provides a complete brake unit capable of securing machines and equipment system effectively. Thanks to its universal design, it can perform the following functions:

As a holding or parking brake, it prevents the unintended start of a stationary shaft.

As a stopping brake, it brings a rotating shaft to a complete standstill. Braking force is generated by spring force. The brake saddle is released by hydraulic pressure.

Thắng HS 075 FHM 020 Ringspann

HS 075 FHM 030 Hydraulic Disc Brakes

♦ Thông số kĩ thuật sản phẩm:

Technical data Operation temperature : -40°C to +85°C Max.

Voltage : 30 VDC Max. Current : 100mA

Switching tolerance : -0,5mm

Protection grade : IP 65 (mounted)

Spanner size (SW24) : 24mm

Tightening torque spanner : 20Nm A)

Cable connector torque : finger tight

Cable length: : 5 meters Cable type : PUR

Cable dimensions : 5*0,34mm²

Thread size limit switch : M12x1

Đại lý Ringspann Việt Nam

Thắng đĩa HS 075 FHM 040 Ringspann

HS 075 FHM 055 Brake Ringspann Việt Nam

♦ Một số phụ kiện

• Inductive proximity switch for “brake released“ operating status

• Inductive proximity switch for brake pad wear control

• Optional painting with surface coating class C4-H or C5M-H (offshore) according to ISO 12944

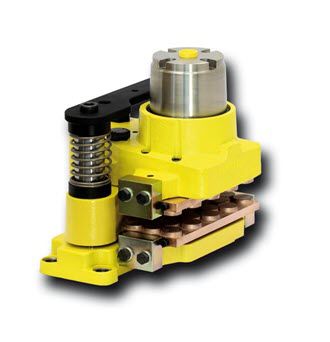

HS 075 FHM Phanh thủy lực Ringspann Việt Nam
