FLAME DETECTOR HONEYWELL

Model F24X QuadBand

Triple IR Fire and Flame Detector (IR/IR/IR/Visible)

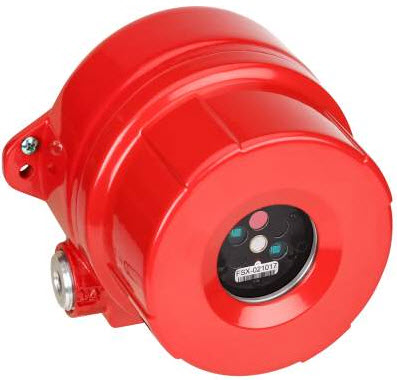

The FS24X is the latest generation high technology Multi-Spectrum Triple IR (IR/IR/IR/Visible) Fire and Flame Detector, which is part of our FSX family of advanced technology Electro-Optical fire detectors. Using our patented* WideBand IR™, WideBand 4.3 micron IR™, and Visible detection technology, the FS24X is a quantum leap in flame and fire detection. Sophisticated software algorithms and dual microprocessors ensure that the FS24X has the highest fire detection performance combined with optimal false alarm
rejection.
110° field of view with a detection range greater than 200 ft.

Features

• Communications choose between RS-485 ModBus & RS-485 FireBus II
• Further communications optional HART-excludes EN54-10 units
• Software interface option, provides graphics, real time data, diagnostics, retrieval of stored information
• Logs, time and date stamped
• Flash memory
• Optical path and electric self testing
• Test lamps available for manual testing
• Power requirement 24 Vdc
• Humidity range: 5 to 98% relative humidity, non-condensing
• 90° field of view temperature range -60° to 85°C, 110° field of view -40° to 85°C
• Visual indicators, green is power, red alarm, yellow fault
• Analogue output 0 – 20 mA stepped – source or sink user selectable
• Output Relays Alarm, Fault and Fire
• Dual Microprocessors, master for digital sampling and signal processing, slave for data acquisition, communications & diagnostics
• FirePic pre-fire event data storage
• Two ¾” NPT or 25mm conduit entries
• Low power consumption
• Largely RFI and EMI immune
• Maintenance required negligible
• Approvals FM, cFM, IECEx, ATEX, CU-TR, EN54-10, Dash 5 and SIL 2 complaint
• Ingress Protection IP66

FS24X-211 Series with 110° field of view, standard temp range -40° to 85°C

FS24X-211-21-1 Copper-Free Aluminum Encl., (2) ¾”NPT entries FM, cFM, IECEx & ATEX approved
FS24X-211-22-1 316 Stainless Steel Encl., (2) ¾” NPT entries FM, cFM, IECEx & ATEX approved
FS24X-211-23-1 Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved
FS24X-211-24-1 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved
FS24X-211-23-8 Copper-Free Aluminum Encl., (2) M25 entries. CU-TR approval, T5 ( Op. Temp -60° to 75°C )
FS24X-211-24-8  316 Stainless Steel Encl. (2) M25 entries, CU-TR approval, T5 ( Op. Temp – 60° to 75°C )

FS24X-911 Series with 90° field of view, standard temp range -60° to 85°C

FS24X-911-21-1 Copper-Free Aluminum Encl., (2) ¾”NPT entries FM, cFM, IECEx & ATEX approved
FS24X-911-22-1 316 Stainless Steel Encl., (2) ¾” NPT entries FM, cFM, IECEx & ATEX approved
FS24X-911-23-1 Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved
FS24X-911-24-1 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved
FS24X-911-23-8 Copper-Free Aluminum Encl., (2) M25 entries , CU-TR approval, T5 ( Op. Temp -60° to 75°C )
FS24X-911-24-8 316 Stainless Steel Encl. (2) M25 entries , CU-TR approval, T5 ( Op. Temp -60° to 75°C )
FS24X-911-21-6 Copper-Free Aluminum Encl., (2) ¾”NPT entries FM, cFM, IECEx, ATEX and EN54-10 approved
FS24X-911-22-6 316 Stainless Steel Encl., (2) ¾” NPT entries FM, cFM, IECEx, ATEX and EN54-10 approved
FS24X-911-23-6 Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx, ATEX and EN54-10 approved
FS24X-911-24-6 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx, ATEX and EN54- 10 approved
FS24X-911-21-5 Copper-Free Aluminum Encl., (2) ¾”NPT entries FM,dash 5, cFM, IECEx & ATEX approved
FS24X-911-22-5 316 Stainless Steel Encl., (2) ¾” NPT entries FM, dash 5,cFM, IECEx & ATEX approved
FS24X-911-23-5 Copper-Free Aluminum Encl., (2) M25 entries FM,dash 5, cFM, IECEx & ATEX approved
FS24X-911-24-5 316 Stainless Steel Encl. (2) M25 entries FM,dash 5, cFM, IECEx & ATEX  approved

FS24X-211 Kits

FS24X-211-21-1 FS24X-211-21-1 Copper-Free Aluminum Encl., (2) ¾”NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-211-22-1 FS24X-211-22-1 316 Stainless Steel Encl., (2) ¾” NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-212-23-1 FS24X-211-23-1 Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-212-24-1 FS24X-211-24-1 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-212-23-8 FS24X-211-23-1 Copper-Free Aluminum Encl., (2) M25 entries , CU-TR approval, T5 (Op. Temp -60° to 75°C ) with FSX-A014R Optional Registered HART Module
FS24X-212-24-8 FS24X-211-24-1 316 Stainless Steel Encl. (2) M25 entries , CU-TR approval, T5 ( Op. Temp -60° to 75°C ) with FSX-A014R Optional Registered HART Module

FS24X-911 Kits

FS24X-911-21-1 FS24X-911-21-1  Copper-Free Aluminum Encl., (2) ¾”NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-911-22-1 FS24X-911-22-1 316 Stainless Steel Encl., (2) ¾” NPT entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-912-23-1 FS24X-911-23-1 Copper-Free Aluminum Encl., (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-912-24-1 FS24X-911-24-1 316 Stainless Steel Encl. (2) M25 entries FM, cFM, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-912-23-5 FS24X-911-23-1 Copper-Free Aluminum Encl., (2) M25 entries FM, dash 5, cFM, dash 5, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-912-24-5 FS24X-911-24-1  316 Stainless Steel Encl. (2) M25 entries FM, dash 5, cFM, dash 5, IECEx & ATEX approved with FSX-A014R Optional Registered HART Module
FS24X-912-23-8 FS24X-911-23-1 Copper-Free Aluminum Encl., (2) M25 entries , CU-TR approval, T5 ( Op. Temp -60° to 75°C ) with FSX-A014R Optional Registered HART Module
FS24X-912-24-8 FS24X-911-24-1 316 Stainless Steel Encl. (2) M25 entries , CU-TR approval, T5 ( Op. Temp -60° to 75°) with FSX-A014R Optional Registered HART Module
