FLAME DETECTOR HONEYWELL

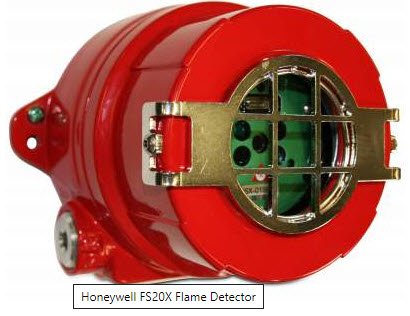

Model FS20X

Multi-Spectrum Fire and Flame Detector UV/Dual IR/VIS

The FS20X is the latest generation high technology Multi-Spectrum (UV/Dual IR/VIS) Fire and Flame Detector, which is part of the FSX family of advanced technology Electro-Optical Flame Detectors. Based on the foundation of the highly successful and reliable SS4 detector, the FS20X detector represents a quantum leap in integrating Infrared and Ultraviolet sensing technologies. The FS20X is a fire and flame detector with a proven UV solar-blind Sensor. The FS20X exhibits faster false-alarm free response to fires over a wider temperature range and with a much longer detection range compared to conventional UV/IR detectors.

Solar blind 90° field of view and detection range greater than 200 ft.

Features

• Units include real time clock with data logging up to 200 events with historic time and date data
• Optical path and electric self testing
• Power requirement 24 Vdc
• Visual indicators, green is power, red alarm, yellow fault
• Sensitivity Very high (60m), high (45m), medium (30m) and low (15m) – switch selectable
• Analogue output 0 – 20 mA stepped – source or sink user selectable
• Output Relays Alarm, Fault and Fire
• Dual Microprocessors, one handles samples and signal, freeing the other for data, diagnostics and storage
• FirePic Up to 6 pre-fire event data storage
• Two ¾” NPT or 25mm conduit entries
• Uses low power
• RFI and EMI resistance
• Enclosure IP66
• Approvals: FM, cFM, ATEX, IECEx, En54-10 and SIL 2 complaint
• Little Maintenance required

This series replaces SS4-A2, SS4-AS2 and SS2-AM models.

ORDERING INFORMATION

FS20X Flame Detector Dual IR/UV Flame Detector

FS20X-211 Series, standard temp range -40° to 85°C

FS20X-211-21-2  Copper-Free Aluminum Encl. with (2) ¾” NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III
FS20X-211-22-2 Stainless Steel Encl. with (2) ¾”NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III
FS20X-211-23-3 Copper-Free Aluminum Encl. with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1
FS20X-211-24-3 Stainless Steel Encl. with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1
FS20X-211-21-6 Copper-Free Aluminum Encl. with (2) ¾” NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III. With En54-10 certification
FS20X-211-22-6 Stainless Steel Encl. with (2) ¾”NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III. With En54-10 certification
FS20X-211-23-6 Copper-Free Aluminum Encl. with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1. With En54-10 certification
FS20X-211-24-6 Stainless Steel Encl. with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1. With En54-10 certification
FS20X-211-23-8 Copper-Free Aluminum Encl. with (2) M25 entries,, CU-TR approval, T5 ( Op. Temp -60° to 75°C )
FS20X-211-24-8 Stainless Steel Encl. with (2) M25 entries, , CU-TR approval, T5 ( Op. Temp -60° to 75°C )

FS20X-211 Kits

FS20X-212-21-2 FS20X-211-21-2 Copper-Free Aluminum Encl. with (2) ¾” NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III with FSXA014 Optional HART Module
FS20X-212-22-2 FS20X-211-22-2 Stainless Steel Encl. with (2) ¾”NPT entries, FM, cFM for Class I, Division 1, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class III with FSX-A014 Optional HART Module
FS20X-212-23-3 FS20X-211-23-3 Copper-Free Aluminum Encl. with (2) M25 entries,FM, cFM, ATEX, IECEx for Class I, Zone 1 with FSX-A014 Optional HART Module
FS20X-212-24-3 FS20X-211-24-3 Stainless Steel Encl. with (2) M25 entries, FM, cFM, ATEX, IECEx for Class I, Zone 1 with FSX-A014 Optional HART Module
FS20X-212-23-8 FS20X-211-23-3 Copper-Free Aluminum Encl. with (2) M25 entries, CUTR approval, T5 ( Op. Temp -60° to 75°C ) with FSX-A014 Optional HART Module
FS20X-212-24-8 FS20X-211-24-3 Stainless Steel Encl. with (2) M25 entries, CU-TR approval, T5 ( Op. Temp -60° to 75°C ) with FSX-A014 Optional HART Module
