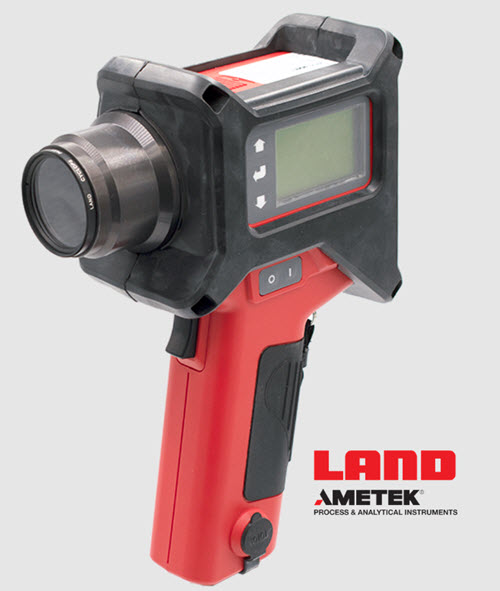

Cyclops C390L Land Ametek | Nhiệt kế cầm tay

Thiết bị đo nhiệt độ cầm tay hãng Land Ametek

Đại lý Land Ametek tại Việt Nam

Measurement Range	450 to 1400 °C / 842 to 2552 °F
Display	External backlit LCD display
	4-digit LCD in viewfinder
Measuring Mode	Continuous, Peak, Valley and Average
Data Logging	9999 readings and 9 routes internally; Mobile (4GB standard storage) or PC logger software ( via Bluetooth® or USB connector)
Data Logging Modes	Classic, Burst, Latched, Route
Optical System	9° field of view; eyepiece adjustable -3.75 to +2.5 diopters
Focusing Range	1 m / 39.3 in. to infinity
Minimum Target Size	4.8 mm / 0.19 in. at 101.4 cm, / 39.9 in nominal from the pyrometer body datum
Spectral Response	Nominally 3.9 μm
Emissivity Adjustment	0.10 to 1.20 in 0.01 step graduations
Response Time	<500 ms (to 98%)
Display Update Time	0.5 s
Accuracy	±0.5% (K)
Measurement Resolution	0.1 °C / 1 °F
Measurement Field of View	180:1 square
Repeatability	≤1 °C / 2 °F
Operating Temp. Range	0 to 50 °C / 32 to 122 °F
Power Requirement	One MN1604 / 6LR61 / PP3 Battery or USB
Output	Bluetooth® / USB Connector
Weight	0.83 kg / 1.8 lb.
Sealing	IP40
Free Data-Logger Software	Software available at Cyclops Logger (PC & Mobile)
Standard Accessories	Lens cap, protection window/filter, battery, wrist strap, USB cable, heat protection jacket
