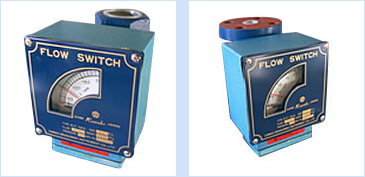

Công tắc lưu lượng Kawaki type KY – Đồng hồ đo lưu lượng Kawaki Type KY

Công tắc lưu lượng Kawaki

Suitable for unclear liquid because the indication part is separated using a mechanical seal
Flow direction is not restricted
Contact position is variable

Công tắc lưu lượng Kawaki type KY - Đồng hồ đo lưu lượng Kawaki Type KY

Type	KY-M type instantaneous flow rate indicator KY-MA type instantaneous flow rate indicator + with lower limit (upper limit) contact
Bore	3/8B to 5B Flange type RC3/8 to RC1.1/2 Screw type
Withstanding pressure	Standard product 1.0MPa
Temperature	Standard product 80°C or less
Accuracy	Each indication scale ±5%
Capacity of contact	*15A: 125,250 or 480VAC,0.5A: 125VDC,0.25A: 250VDC
Application	Suitable for indication and warning of flow rate of lubrication oil quantity Suitable for indication and warning of flow rate of fluid that contains iron powder
Material of main unit	FC250,CAC406,SUS304
Material of main unit	C3604B,SUS304
Remark	For places with frequent vibration, please use earthquake resistant SF type. If the use pressure is 1.0MPa or more, use SF type for high pressure. *The range of minimum scale is 0 to 30L/min (water) and 0 to 20L/min (oil).
