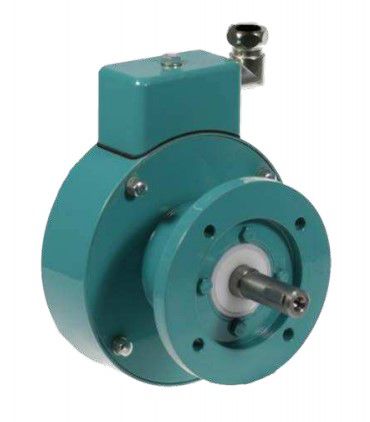

FGA 30R2 Schenck process Việt Nam cảm biến tốc độ

Speed sensor FGA 20RSLE Schenck process Việt Nam

Ứng dụng của sản phẩm:

FGA 30R được thiết kế để đo tốc độ của hệ thống băng tải. Chúng là một option của thiết bị cân MULTIBELT. Khách hàng có thể sử dụng ATEX zones 21, 22, 1 hoặc 2.

Về thiết bị:

The speed sensor consists of a housing with an internal impulse wheel mounted on a drive shaft. The angular velocity of the shaft is measured as a frequency signal through windows in the measuring wheel and with one or two (legal-for-trade) proximity sensor/s and processed using an evaluation device. The FGA 30R2 speed sensor is made entirely of steel with a powder-coated surface. The FGA 30R2 can be fitted with a rocker and a friction wheel for use as a friction wheel speedometer for registering the speed of the returning belt. Alternatively, with a coupling the FGA 30R2 can be run by e.g. the tail pulley of a belt feeder system

Thông tin sản phẩm của hãng: SCHENCK PROCESS

Thông tin sản phẩm tại Việt Nam: SCHENCK PROCESS Việt Nam

FGA 20RSLE Speed sensor Schenck process Việt Nam

Cảm biến FGS 30R hãng Schenck

Đặc tính kĩ thuật của sản phẩm:

 If operated as a friction wheel speedometer: The friction wheel runs on the interior of the empty, returning belt of a belt feeder system with a rubber ring. Under its own weight, the wheel is friction-locked against the belt and is made to rotate by the belt movement. The non-slip motion means that the wheel circumferential velocity corresponds to the belt speed. The rotational speed of the wheel is registered by a sensor that records the speed by means of transmitting a signal through an alternating series of windows and bars, recording a frequency that corresponds to the belt speed of the belt feeder system. This frequency is transmitted to the evaluation electronics where it is analyzed.

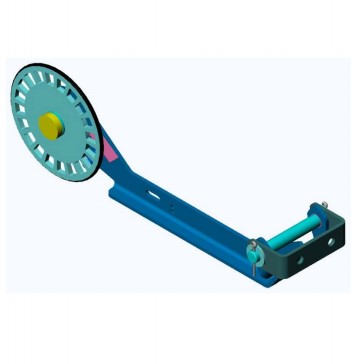

Cảm biến tốc độ trên băng tải FGA 20RSLE Schenck process Việt Nam

Thiết kế sản phẩm:

The speed sensor consists of a rocker that can be pivoted around an axis. The axis is mounted in a bracket that is attached to the machine (belt conveyor) to be monitored. The measuring wheel is attached to this rocker and runs slipfree on the belt to be measured. The belt speed is measured as a frequency signal through windows in the measuring wheel and with one or two (legal-for-trade) proximity sensor/s and processed using an evaluation device. The FGA 20RSLE speed sensor is manufactured entirely of a highly corrosion-resistant galvanized steel and in the ATEX – certified model made of 1.4301 stainless steel.

Đại lý hãng Schenck process tại Việt Nam

Speed sensor Schenck process

Cảm biến tốc độ băng tải FGA 30R2 Schenck process
