Aspirating smoke detectors

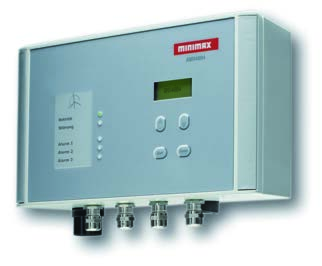

AMX4004, basic devices

Part no.: 909244

The aspirating smoke detector AMX4004 is an active smoke detection system that can be individually tuned to the application area with up to three different detector heads. Up to 12 suction holes with a 100 m (328 ft) pipe system  are possible thanks to the powerful fan.

Product features

• Up to three combined sensors can be used for different application areas (scattered light smoke sensor, ionisation smoke sensor, carbon monoxide gas sensor)
• High aspiration capacity
• Scattered light smoke sensors for different sensitivity ranges, with pollution compensation for use in critical environments
• Ionisation smoke sensor for detecting very small and dark smoke particles
• Carbon monoxide gas sensor for earliest fire detection (40 ppm CO)
• Integrated LC display for indicating status information
• Configurable without accessories (menu-controlled)

Included in delivery

• 1 Aspirating smoke detector AMX4004
• Part No.: 909244

Not included in delivery

Detector heads:

• Optical smoke detector OMX1002C 1HU, 2.73 % / m (0.83 % / ft)
• Part No.: 906323
• Optical smoke detector OMX1002C HS 1HU, 0.34 % / m (0.10 % / ft)
• Part No.: 906324
• Optischer Rauchmelder OMX1002C VHS 1HU,0.11 % / m (0.04 % / ft)
• Part No.: 910389
• Ionisation smoke detector IMX1002E 1HU, y=0.8
• Part No.: 909491
• Carbon monoxide gas detector GMX1002CO 1HU, 40 ppm
• Part No.: 909492
