ĐẠI LÝ PHÂN PHỐI ROTARY VALVE DMN WESTINGHOUSE

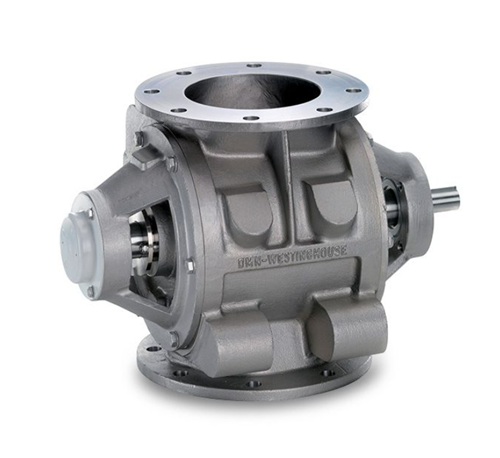

ROTARY VALVE AL DMN WESTINGHOUSE

AL DMN WESTINGHOUSE

HIGH DUTY ROTARY VALVE

High filling efficiency
Sheared angle inlet
Explosion proof models available up to 10 bar g
Drilled flanges in accordance with PN10, ANSI 150lbs and JIS
Flameproof versions suitable for St2 products available
Versions conforming to ATEX 2014/34/EU available
NFPA 69 Compliant versions available
Easy detachable versions available

AVAILABLE SIZES AND CAPACITY

Size AL DMN WESTINGHOUSE:	DN 100	DN 150	DN 175	DN 200	DN250	DN 300	DN 350	DN 400	DN 450	DN500
Capacity* LTR/REV.	0.8	2.5	5.5	105	19	34	58	91	135	230

*Capacity per revolution at 100% filling

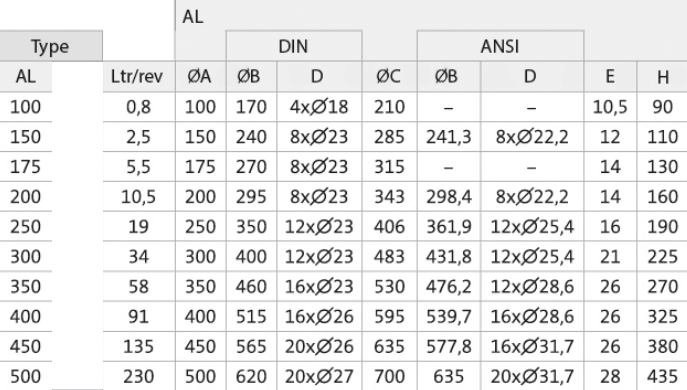

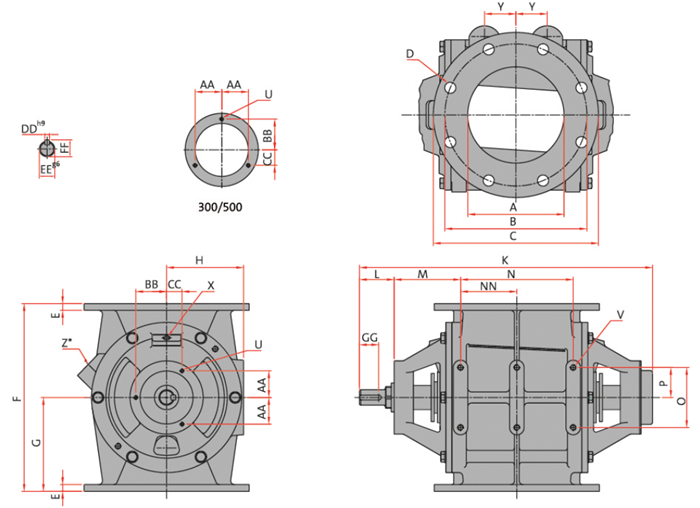

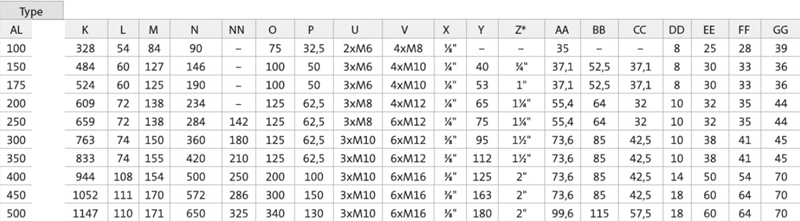

DIMENSIONS

AL DMN WESTINGHOUSE | ROTARY VALVE DMN WESTINGHOUSE

Size conversion table

NOMINAL SIZE		OD
mm	Inches	Phi mm
DN 100	4″	~ Ø 114 mm
DN 125	5″	~ Ø 141 mm
DN 150	6″	~ Ø 168 mm
DN 200	8″	~ Ø 219 mm
DN 250	10″	~ Ø 273 mm
DN 300	12″	~ Ø 324 mm
DN 350	14″	~ Ø 356 mm
DN 400	16″	~ Ø 406 mm
DN 450	18″	~ Ø 457 mm
DN 500	20″	~ Ø 508 mm
DN 600	24″	~ Ø 558 mm
