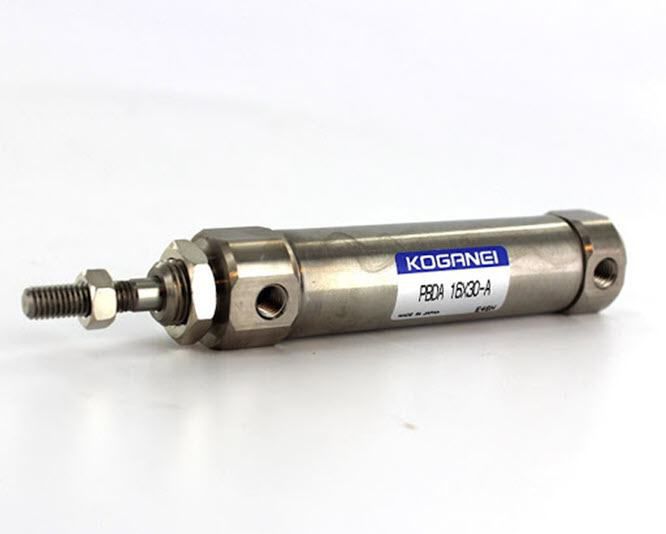

XY LANH KHÍ NÉN PBTA KOGANEI VIỆT NAM
XY LANH KHÍ NÉN PBTA KOGANEI VIỆT NAM
PBTA Koganei Việt Nam, PBDA Koganei Việt Nam, PBSA Koganei Việt Nam, Pen Cylinders Koganei Việt Nam, xy lanh tròn Koganei, Xy lanh khí nén Koganei
0877.105.430
cong@ttnvietnam.vn
Chi tiết sản phẩm
Pen Cylinders PBDA Koganei
|
PBSA10X15-A |
|
PBSA10X30-7 |
|
PBSA10X30-A |
|
PBSA10X60 |
|
PBSA16X15-7 |
|
PBSA16X15-A |
|
PBSA16X30 |
|
PBSA16X30-7 |
|
PBSA16X45 |
|
PBSA16X50 |
|
PBSA16X60 |
|
PBTA6X5 |
|
PBTA6X15 |
|
PBTA10X15 |
|
PBTA10X30 |
|
PBTA16X15 |
Pen cylinders PBDA Koganei
-
Double acting type
-
● Φ6 to 16 mm [0.236 to 0.630 in] cylinder bore. Complies with all model non-ion standards. Compact, light weight, and more durable. Used in manufacturing lines in a wide range of industries.
-
Single acting push out type
-
● Φ6 to 16 mm [0.236 to 0.630 in] cylinder bore. Complies with all model non-ion standards. Single acting type with integrated return spring.
-
Single acting pull
-
● Φ6 to 16 mm [0.236 to 0.630 in] cylinder bore. Complies with all model non-ion standards. Single acting type with integrated return spring.
-
Non-rotating double acting type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Hexagon type non-rotating piston rod.
-
Single acting non-rotating push out type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Single acting type with hexagon type non-rotating piston rod, and integrated return spring.
-
Single acting non-rotating pull type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Single acting type with hexagon type non-rotating piston rod, and integrated return spring.
-
Double acting double rod type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Cylinder with piston rods on both ends of the piston.
-
Double acting push stroke adjustment type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Cylinder with stroke limiting stopper.
-
Double acting pull stroke adjustment type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Cylinder with stroke limiting stopper.
-
Double acting type heat resistant type
-
● Φ6 to 16 mm [0.236 to 0.630 in] cylinder bore. Fluorine packing enables operating temperatures up to 150 degrees. However, a sensor switch cannot be equipped.
-
Low hydraulic pressure: Double acting type
-
● Φ6 to 16 mm [0.236 to 0.630 in] cylinder bore. Pneumatic-hydraulic converter can be used for simple low-speed operation control of a cylinder operated by low hydraulic pressure.
-
Dual stroke double acting pull type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Two cylinders can be combined back-to-back for two operation strokes.
-
Double acting multi position type
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. Two cylinders can be linked in series and three stop positions can be specified.
-
Double acting type with replaceable cushion
-
● Φ10 to 16 mm [0.394 to 0.630 in] cylinder bore size. Compatible with all model non-ion standards. An air cushion is provided at the stroke end, which cushions terminal impact.
|
PB-4X[5,10,15,20] |
|
PB-6X[10,15,20,25,30,40,50,60]-R |
|
PB-6X[10,15,20,25,30,40,50,60]-R-[FA,FB,LB] |
|
PB-6X[10,15,20,25,30,40,50,60]-S-R |
|
PB-6X[10,15,20,25,30,40,50,60]-S-R-[FA,FB,LB] |
|
PB-10X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-[CB,R,U] |
|
PB-10X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-[CB,R,U]-[CJ,FA,FB,LB] |
|
PB-10X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-S-[CB,R,U] |
|
PB-10X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-S-[CB,R,U]-[CJ,FA,FB,LB] |
|
PB-12X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-[CB,R,U] |
|
PB-12X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-[CB,R,U]-[CJ,FA,FB,LB] |
|
PB-12X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-S-[CB,R,U] |
|
PB-12X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200]-S-[CB,R,U]-[CJ,FA,FB,LB] |
|
PB-16X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200,250,300]-[CB,R,U] |
|
PB-16X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200,250,300]-[CB,R,U]-[CJ,FA,FB,LB] |
|
PB-16X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200,250,300]-S-[CB,R,U] |
|
PB-16X[10,15,20,25,30,40,50,60,75,80,100,125,150,160,175,200,250,300]-S-[CB,R,U]-[CJ,FA,FB,LB] |
|
PB-4X10 Xi lanh tròn Koganei Việt Nam |
|
PB-4X15 Koganei Việt Nam |
|
PB-6X10-S-R Đại lý Koganei Việt Nam |
|
PB-6X15-R Nhà phân phối Koganei Việt Nam |
|
PB-6X15-S-R Pen cylinders Koganei |
|
PB-6X20-S-R Cylinders Koganei Viet nam |
|
PB-6X25-S-R Koganei Japan |
|
PB-6X30-R Koganei Pneumatics |
|
PB-6X40-S-R Xi lanh Koganei |
|
PB-6X50-S-R Pen cylinders Koganei Vietnam |
|
PB-6X60-S-R Xilanh khí và tay kẹp koganei |
|
PB-10X10-S-U |
|
PB-10X15-S-U |
|
PB-10X20-S-U |
|
PB-10X30-S-U |
|
PB-10X30-U |
|
PB-10X40-R |
|
PB-10X40-S-U |
|
PB-10X50-S-CB |
|
PB-10X50-S-U |
|
PB-10X60-S-U |
|
PB-10X75-S-U |
|
PB-10X80-S-U |
|
PB-10X125-S-U |
|
PB-10X150-S-R |
|
PB-10X150-S-U |
|
PB-10X160-S-U |
|
PB-10X175-R |
|
PB-10X175-S-U |
|
PB-10X200-S-U |
|
PB-12X10-S-U |
|
PB-12X15-S-U |
|
PB-12X20-S-U |
|
PB-12X25-S-U |
|
PB-12X30-S-U |
|
PB-12X40-S-U |
|
PB-12X50-S-U |
|
PB-12X60-S-U |
|
PB-12X60-U |
|
PB-12X75-S-U |
|
PB-12X80-S-U |
|
PB-12X100-S-U |
|
PB-12X100-U |
|
PB-12X125-S-U |
|
PB-12X150-S-U |
|
PB-12X160-S-U |
|
PB-12X175-S-U |
|
PB-12X200-S-U |
|
PB-16X10-S-U |
|
PB-16X15-S-U |
|
PB-16X25-S-U |
|
PB-16X30-S-U |
|
PB-16X40-S-U |
|
PB-16X50-S-U |
|
PB-16X50-U |
|
PB-16X60-S-U |
|
PB-16X75-S-U |
|
PB-16X100-S-R |
|
PB-16X100-S-U |
|
PB-16X125-S-U |
|
PB-16X125-U |
|
PB-16X150-S-U |
|
PB-16X200-S-U |
|
PB-16X250-S-U |
|
PB-16X300-S-U |
|
PB-16X300-U |
Pen cylinder PBDA Koganei, PBDAS Koganei Việt Nam,PBSA Koganei Việt Nam, PBSAS Koganei Japan, PBTA, PBTAS, PNDAL, PBDALS, PBSAL
