Cylinder NORGEN

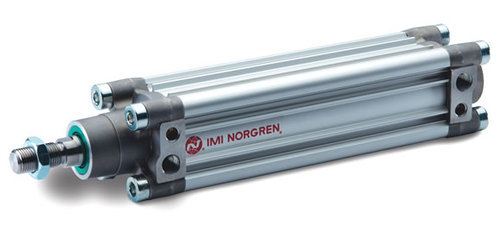

ISOLine™ profile double acting cylinder, 32mm diameter, 50mm stroke
ITEM: PRA/802032/M/50
Advantages
- Conforms to ISO 15552 (VDMA 24562 and NFE 49-003-1)
- High performance, stability and reliability
- Polyurethane seals ensure efficient low friction operation and long life
- Switches can be mounted flush with the profile barrel
Technical data
| Medium: | Compressed air, filtered and lubricated or non-lubricated |
|---|---|
| Port size: | G1/8 |
| Operation: | Double acting |
| Operating pressure: | 1 … 12 bar |
| Operating temperature: | -20 … 80 °C |
| Cylinder diameter: | 32 mm |
| Piston rod diameter: | 12 mm |
| Stroke length: | 50 mm |
| Piston rod thread: | M10 x 1.25 |
| Standard: | ISO 15552 |
| Theoretical force: | 482 N |
| Material – Piston head seals: | PUR |
| Material – Piston rod: | Stainless steel (Martensitic) |
| Series: | ISOLine |
| Nhà cung cấp | Đại lý phân phối Norgren tại Việt Nam |
|---|---|
| Xuất xứ | Châu Âu – EU |
