Bảng điều khiển VOP28000 Schenck process Việt nam

VOP 28010 DISOMAT VOP Schenck process

Thông tin sản phẩm của hãng: SCHENCK PROCESS

Thông tin sản phẩm của TTN: SCHENCK PROCESS VIỆT NAM

Ứng dụng của sản phẩm:

The equipment of the VOP 28000/ VFG 28000/VTT 28000 series is used as display and control terminals for the weighing terminals of the DISOMAT® and DISOBOX® types. The VOP is the main – Legal-for-trade – display of a DISOBOX® Plus. Its built-in flexible membrane keyboard allows you the entire range of scale operation. The VOP is used as a remote second control terminal on a DISOMAT® Tersus its mirror. This makes it possible to visualise and operate the scale from a second work station. Applications could be e.g.: – Alternating operators workplaces – Operated by the set-up man and plant operator – Mounting the terminal in a remote control room The VOP can also be used as a secondary display for all DISOMAT® and DISOBOX® units (including older types) without an operating unit (DTA mode).

Đặc tính sản phẩm:

The screen of the VOP shows a 1:1 copy of the display of a DISOMAT® Tersus in its mirror function. This is why using the unit as a second control terminal does not require the operator to change habits in any way. In this operating mode, the buttons on the VOP function parallel to those of the main unit because the button symbols were kept identical. You key in numbers with the 12 function keys and you can overlay help wherever needed. If numerical inputs frequently are required we recommend the use of the optional keyboard VTT 28000 with numerical 10- digit block (identical dimensions to VOP). Occasional α-entries also are possible using the VTT. A standard off-the-shelf USB keyboard of any kind can be used for more comprehensive text entries. It shows the weight of a DISOMAT® unit in large letters in the secondary display operating mode although no input is possible. This operating mode can also be combined with other DISOMAT® units

Display and Operator Panels VOP 280xx/VFG 28000 Keyboard VTT 28000

Panels VOP 28040 Bảng điều khiển Schenck process Việt Nam

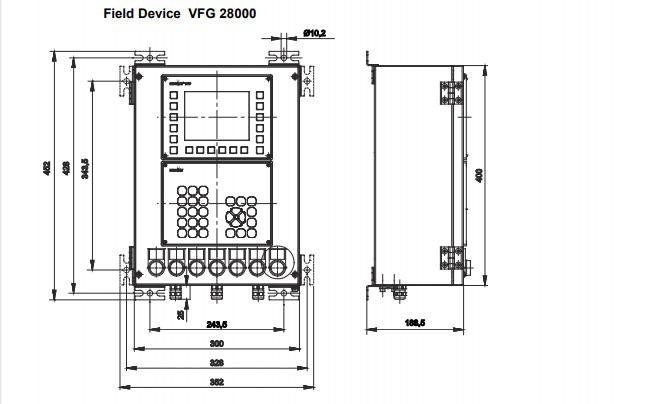

VFG 28000 Bộ điều khiển Schenck process Việt Nam

Cấu tạo của sản phẩm:

VOP equipment is available as: • Front-of-panel unit (Frontal IP65/NEMA 4X) • A portable plastic unit with a cable (IP65) or with a storage battery and Bluetooth connection • Stainless steel unit for desktop- or wall-mounting (IP65) • Stainless steel field unit for wallmounting incl. VTT 28000 keyboard and additional operating buttons. The backlit, transflective LCD display in QVGA format (320 x 240 pixels) ensures excellent legibility both indoors and outdoors in full sunlight. The devices can be supplied either with 24 VDC or mains voltage. The auxiliary voltage of a DISOMAT® Tersus can be used directly as a power supply. A serial RS485 connection is available as the interfaces to the weighing electronics – another option is using the permanently integrated Ethernet connection. The integrated USB conn

Display and Operating Terminal for DISOMAT® /DISOBOX®

As a Front-of-Panel, Table, Hand-Held or Field Device

Contrast-Rich LCD Display, Suitable for Daylight

Built-In Keyboard

Enlarged Keyboard (Optional)

Protection Class IP65

Approved for Legal-for-Trade Operation

VFG 28000 panels Schenck process Việt Nam

Đại lý Schenck process Việt Nam

Hết bài

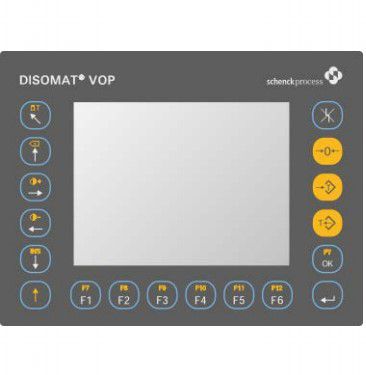

VOP28000 Bảng điều khiển | VFG 28000 Schenck process
