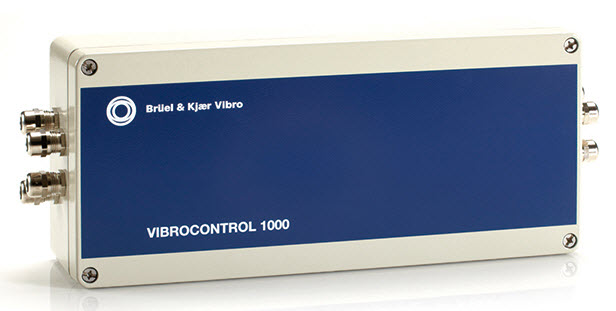

VIBROCONTROL 1000

The VIBROCONTROL 1000 family, is used when single-channel monitoring is sufficient to protect a machine.

Monitors vibrations of the machine or bearing housings.

Electro-dynamic vibration sensors are used, mounted either horizontally, vertically, or axially to provide the vibration signals.

• RMS value of vibration velocity
• Peak value of vibration displacement

Sensor: Vibration velocity sensor (e.g. VS-068)

Monitors the vibrations of the shaft relative to the bearing.

The signals are provided by two non-contacting sensors mounted in the same radial plane at 90º to each other.

Measurement parameter:

• Smax acc. to DIN ISO 7919
• MAX (x,y) acc. to API 670

Sensors: 2 (x and y) non-contacting type (SD-05x or IN-08x)

Monitors the axial position of the shaft. The signal is provided by a single non-contacting sensor.

Measurement parameter:

• Static axial position relative to a pre-selected position

Sensor: 1 non-contacting displacement sensor (SD-xxx or IN-08x Series)

VIBROCONTROL 950 / 960:

• Single-channel machine protection units for case vibration monitoring.
• Accelerometers CCS* (VIBROCONTROL 950) or velocity sensors (VIBROCONTROL 960) can be connected.
• DIN rail mounting in machine cabinets or in optional field housings.

VIBROCONTROL 1500:

Protection of two bearings of rolling element bearing machines by monitoring of up to six machine condition parameters: absolute casing vibration, rolling element bearing condition and temperature with just two accelerometers using integrated temperature sensors.

• Input: Two accelerometers (CCS*) with integrated temperature elements (AS-062T1)
• Measurement: Casing vibration overall values in mm/s rms according to ISO 10816; bearing condition unit, temperature
• Two alarm and danger limit (shutdown) relays
• Frequency analysis of casing vibration
• Internal trend measurement
• Post mortem analysis
• Remote monitoring via Control- Center-Software

VIBROCONTROL 1000:

• Singe-channel machine protection system.
• Casing vibration monitoring
• Input from velocity sensors
• Field housing (IP 65)

VIBROCONTROL 1100:

• Casing vibration monitoring with accelerometers or velocity sensors. A dual-channel protection system which covers the most critical parameters on rolling element bearing machines.
• Two-channel input of accelerometers or velocity sensors
• Rolling element bearing condition unit – BCU
• Two limit relays, one OK relay
• Flexible, freely programmable outputs (limit values and analog outputs)

VIBROCONTROL 1850

• Casing vibration (acceleration sensors CCS*)

VIBROCONTROL 1860

• Casing vibration (velocity sensors)

VIBROCONTROL 1870

• Relative shaft vibration, axial position

VIBROCONTROL 850:

• Vibration monitor for low-cost monitoring of rotating equipment
• Integrated capacitive accelerometer
• 2 alarm relays and 1 analog output in a single simple device
• Simple onsite configuration possibilities; no additional tools needed
• Machine protection according DIN/ISO 10816
• IP 68 Housing
