Schenck processVBB 5kg Loadcell Việt Nam

VEB 0,5 t load cellsSchenck process

Thông tin sản phẩm của hãng: Schenck

Thông tin sản phẩm tại Việt Nam: Schenck Việt Nam

Ứng dụng:

Load cells of the VBB type are designed to convert the mechanical input signal, the load, proportionally into the electrical output voltage.

Combined with the corresponding VEB elastomer mounts, they are very suitable for use with platform, batching, and hopper scales.

Their compact design simplifies the integration in any existing construction.

The rugged design of the load cells and mounts ensures reliable operation even in severe environments.

Một số code của sản phẩm:

Ring Torsion Load Cell RTB
The smaller brother of the RTN. Also suitable for many different applications such as accurate filling of small hopper scales, platform scales or conveying measurement…
Rated capacity 130 kg – 500 kg. Accuracy classification: C3/C3 Mi7.5/C6 (legal-for-trade)

Ring Torsion Load Cell RTR/RTD
Same quality as the RTN, but this version was specificly designed for the Indian market.

Rocker load cell – VDW load cells
This self-centring pressure load cell is highly sought after as it satisfies the growing call for low-cost but high quality weighing solutions. It is well protected and reaches legal-for-trade accuracy of OIML class C3. Usual application for this load cell is a vehicle scale. Rated capacity: 33t-44t

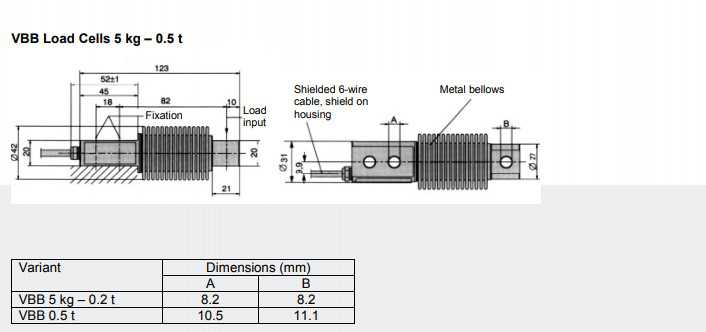

Bản vẽ kĩ thuật VBB Loadcell 5kg-0,5t Schenck process Việt Nam

Đại lý Schenck process tại Việt Nam

Highest accuracies (up to 6000 increments to OIML R60)

• Hermetically sealed due to laser welding (IP68)

• Use in hazardous zone with protection class Ex ia IIC T4 Gb / Ex ia IIIC T125 °C Db or protection class Ex nA IIC T4 Gc / Ex tb IIIC T125 °C Db

 • Optimized for parallel connection through perfect calibration

• 6-wire circuit

 • 100 % stainless steel

VEB 5 kg – 0.2 t

D 725 408.01 Schenck process Việt Nam

D 725 408.02 loadcell VEB Schenck

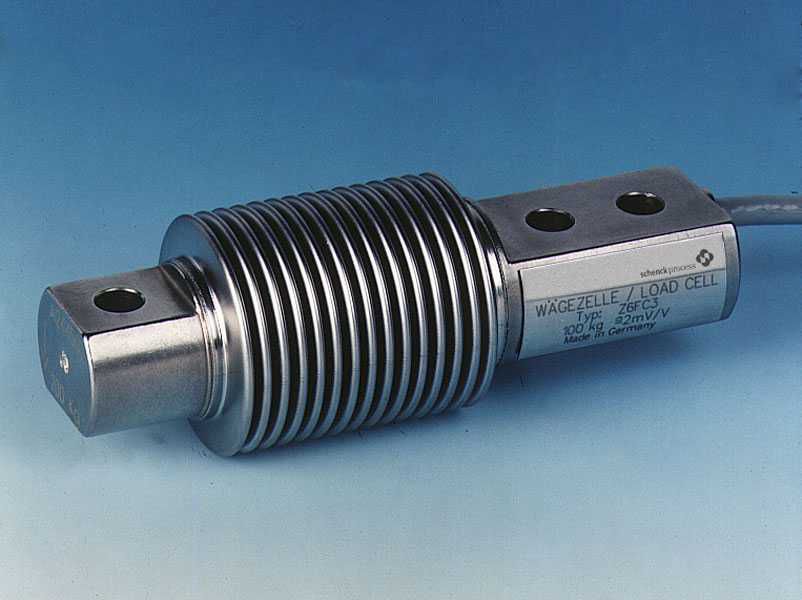

Shear Beam Load Cell – VBB

Classic shear beam load cell for rated loads under 1 t with reliable accuracy.
Rated capacity: 0.1 t – 0.5 t. Accuracy classification after OIML: D1 – C4 (legal-for-trade)
A version for hazardous areas is also available.

Construction

Entirely made of stainless steel and hermetically sealed by laser welding, the VBB load cells are connected by using a high-quality shielded 6-wire PVC cable.

The 6-wire circuit provides for a measuring signal which is insensitive to connecting cables of different lengths

Functions

High calibrating accuracy, thus, optimal prerequisites for the parallel connection of load cells

High degree of measuring signals repeatability

Damping of side forces through the elastomer mount

Self-centering after side load

Minimal effect on accuracy by side forces

VBB – VEB Schenck process Loadcell Vietnam
