Van điện từ Burkert – Solenoid Valves Burkert

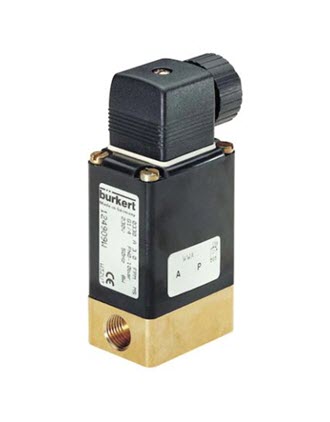

Type 0330 – Direct-acting 2/2 or 3/2 way pivoted armature valve

Description Solenoid Valves Type 0293 Burkert:

The 0330 valve is a direct-acting, mediaseparated pivoted armature valve. It is available in 3/2 and 2/2 way versions. As a 3/2 way version, it can be used as a distributor or mixing valve. Various diaphragm material combinations and methods of operation are available depending on the application. The standard brass housing satisfies all European drinking water requirements. Stainless steel (316), PVDF, and polypropylene housing versions complete the offering. The solenoid coils are moulded with a chemically resistant epoxy. The 0330 is equipped with manual override for commissioning and testing. For reduced energy requirements all coils can be delivered with electronic power reduction or as an impulse version. The switching status can be indicated with position feedback as a binary or NAMUR signal. In combination with a plug in accordance with DIN EN 17301-803 Form A, the valves satisfy protection class IP65/67 – in combination with a stainless steel or plastic housing NEMA 250 Cat. 4X.

Advantages / benefits Type 0330 Burkert:

• Direct-acting, media-separated valve with diameter of up to DN5
• Maintenance-free pivoted armature technology
• Vibration-proof, block screwed coil system
• Suitable for aggressive alkaline and acidic solutions
• Service-friendly, robust manual operation
• Explosion proof versions
