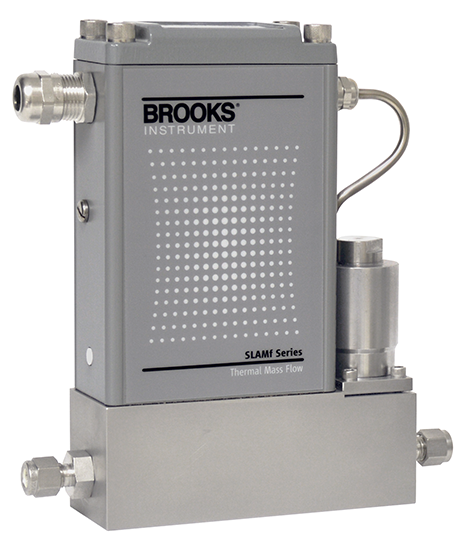

Thiết bị đo và điều khiển lưu lượng khí ga – SLAMf50 Brooks Vietnam

Thiết bị đo và điều khiển lưu lượng khí ga

SLAMf51 Brooks Vietnam

Brooks instrument Việt nam

SLAMf Series Elastomer Sealed Thermal Mass Flow Controllers & Meters Việt Nam

Features

NEMA4X / IP66 rated hardened enclosure
Wide range of full scale flows – from 0.003 up to 2500 lpm (36,000 lpm for meters)
Suitable for a broad range of temperature and pressure conditions
Industry-leading thermal flow measurement sensor technology delivers excellent accuracy
Programmable multi-gas/multi-range capabilities
Advanced self-test routines and an independent diagnostic service port lets users troubleshoot or change flow conditions without removing the MFC from service
Broad array of communication options including DeviceNet®, Profibus® and RS-485 plus analog interfaces

Benefits

Hardened device housing ensures process accuracy and control in harsh conditions
Proprietary thermal sensing technology delivers superior signal to noise ratio at low set points
Long-term sensor stability reduces maintenance and periodic recalibration requirements
Choose one device, program up to six different gas calibrations
User-accessible service port simplifies installation, troubleshooting and diagnostic tasks
Excellent accuracy backed by superior metrology systems and calibration based on global standards
Multi-protocol communication interface simplifies integration into existing systems

Applications

Chemical and petrochemical pilot plants
Life sciences bioreactors
Blanketing in food processing

Xem thêm các sản phẩm khác của Hãng Brooks tại đây

SLAMf50	SLAMf60	SLAMf51	SLAMf61	SLAMf53	SLAMf63	SLAMf64
Product Type	Mass Flow Controller	Mass Flow Meter	Mass Flow Controller	Mass Flow Meter	Mass Flow Controller	Mass Flow Meter	Mass Flow Meter
Differentiator	Device Type Flow Range	Device Type Flow Range	Device Type Flow Range	Device Type Flow Range	Device Type Flow Range	Device Type Flow Range	Device Type Flow Range
Flow Range (Full Scale Capacity)	0.003 – 50 slpm	0.003 – 50 slpm	15 – 200 slpm	15 – 200 slpm	100 – 2500 slpm	100 – 2500 slpm	300 – 36,000 slpm
Max Pressure	1500 psi / 100 bar	1500 psi / 100 bar	1500 psi / 100 bar	1500 psi / 100 bar	1000 psi / 70 bar	1000 psi / 70 bar	Flow Rate Dependent
Accuracy	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	0.9% S.P. (20-100% F.S.) 0.18% F.S. (2-20% F.S., 1-20% F.S. from 1-50 lpm)	100 – 2500 lpm: 0.9% S.P. (20-100% F.S.) 100 – 1100 lpm: 0.18% of F.S. (2-20% F.S.) 1100 – 2500 lpm: 1.0% of F.S.	100 – 2500 lpm: 0.9% S.P. (20-100% F.S.) 100 – 1100 lpm: 0.18% of F.S. (2-20% F.S.) 1100 – 2500 lpm: 1.0% of F.S.	±1.0% of F.S.
Repeatability	0.20% S.P.	0.20% S.P.	0.20% S.P.	0.20% S.P.	0.20% S.P.	0.20% S.P.	±0.25% S.P.
Response Time	<1 second	<1 second	<1 second	<1 second	<3 seconds	<3 seconds	N/A
Multi-Gas & Range Configurability	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Diagnostic Capability	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack	Status Lights – MFC Health , Network Status Alarms – Sensor Output, control Valve output, Over Temperature, Power Surge/Sag, Network Interruption Diagnostic/Service Port – RS485 via 2.5 mm jack
Analog Communication	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA	0-5 Vdc, 1-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA
Digital Communication	DeviceNet™ Profibus® FOUNDATION^TMFieldbus RS-485	DeviceNet™ Profibus® FOUNDATION^TMFieldbus RS-485	DeviceNet™ Profibus® FOUNDATION^TMFieldbus RS-485	DeviceNet™ Profibus® FOUNDATION^TMFieldbus RS-485	DeviceNet™ Profibus® FOUNDATION^TMFieldbus RS-485	DeviceNet™ Profibus® FOUNDATION^TMFieldbus RS-485	DeviceNet™ Profibus® FOUNDATION^TMFieldbus RS-485
