Bộ điểu khiển và đo lưu lượng Coriolis cho dòng chảy thấp

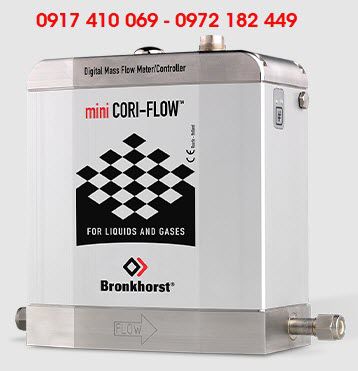

MINI CORI-FLOW™ M15

Model: M15-MAD-33-0-S

Low Flow Coriolis Mass Flow Meters / Controllers for Liquid and Gases
mini CORI-FLOW™ Mass Flow Meters and Controllers are precise and compact instruments, based on the Coriolis measuring principle, designed to cover the needs of the low flow market. Bronkhorst® model M15 Mass Flow Meter (MFM) is suited for highly accurate measurement of gas or liquid flow ranges between 0,2…5 kg/h and 3…300 kg/h (which corresponds with 2,67…66,6 ln/min up to 40…4000 ln/min when used on nitrogen) at operating pressures up to 100 bar (higher on request). The instruments are equipped with a robust IP65 weatherproof housing and are optionally available with ATEX approval for use in Zone 2 hazardous areas.

The instrument contains a microprocessor based pc-board with signal and fieldbus conversion and a PID controller for optional mass flow control by means of a separately mounted control valve or pump.

Thiết bị đo lưu lượng Coriolis cho dòng chảy thấp MINI CORI-FLOW M15

Technical specifications

Measurement / control system
Flow range (intermediate ranges available)	min. 0,2…5 kg/h; max. 3…300 kg/h
Mass flow accuracy	Liquid: ±0,2% of rate; Gas: ±0,5% of rate
Repeatability	± 0,5 % of rate ± ½(ZS* x 100/actual flow)%
Turndown ratio	up to 1:100
Zero stability (ZS)	< ± 50 g/h (Guaranteed at constant temperature and for unchanging process and environment conditions.)
Response time (sensor)	≤ 200 msec
Temperature effect	on zero: < 5 g/h/°C; on span: < 0,001% Rd/°C; self heating (at zero flow): < 10°C (Depends on flow rate, heat capacity fluid, T amb., T fluid and cooling capacity.)
Operating temperature	0 … 70 °C ; for ATEX Cat.3, Zone 2 max. 50°C
Mounting	Any position, attitude sensitivity negligible. External shocks or vibrations should be avoided.
Temperature accuracy	± 0,5 °C
Density accuracy	< ± 5 kg/m³
Leak integrity, outboard	tested < 2 x 10^-9 mbar l/s He
Warm-up time	> 30 min for optimum accuracy

Mechanical parts
Sensor	single tube, DN 3.1
Material (wetted parts)	stainless steel 316L / 1.4404;
Housing	stainless steel 430F
Pressure rating (PN)	100 bar abs , higher on request
Process connections	compression type or face seal (VCR/VCO) couplings (welded)
Seals	metal
Weight	4,7 kg
Ingress protection	IP65 (weatherproof)

Electrical properties
Power supply	+15…24 Vdc +/- 10% Max. ripple recommended: 50 mV tt
Max. power consumption	meter: max. 3 W; controller: max 7 W
Analog output	0…5 (10) Vdc, min. load impedance > 2 kΩ; 0 (4)…20 mA (sourcing), max. load impedance < 375 Ω
Analog setpoint	0…5 (10) Vdc, min. load impedance > 100 kΩ 0 (4)…20 mA (sourcing), max. load impedance ~ 250 Ω
Digital communication	standard: RS232; options: PROFIBUS DP, DeviceNet™, Modbus RTU or FLOW-BUS

Electrical connection
Analog/RS232	8-pin DIN (male);
PROFIBUS DP	bus: 5-pin M12 (female); power: 8-pin DIN (male);
CANopen® / DeviceNet™	5-pin M12 (male);
FLOW-BUS/Modbus-RTU/ASCII	5-pin M12 (male);
