Thiết bị phân nhánh điện thế EL9187 Beckhoff
EtherCAT System terminals EL9187 Beckhoff

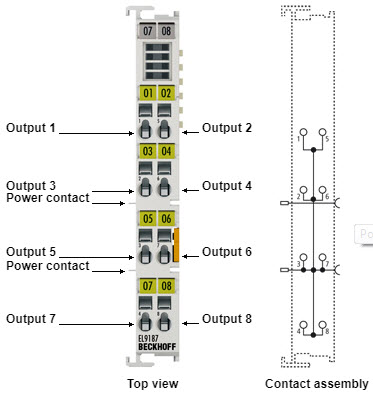

The potential distribution terminal EL9186 provides eight terminal points with a potential and enable the voltage to be picked up without further bus terminal blocks or wiring.
| Technical data | EL9187 | ES9187 |
|---|---|
| Technology | potential distribution terminal |
| Number of outputs | e.g.: 8 x 0 V contact |
| Current load | ≤ 10 A |
| Power LED | – |
| Defect LED | – |
| Renewed infeed | – |
| Current consumption E-bus | – |
| Nominal voltage | ≤ 60 V |
| Integrated fine-wire fuse | – |
| Electrical isolation | 500 V (E-bus/field potential) |
| Diagnostics in the process image | – |
| Reported to E-bus | – |
| PE contact | – |
| Shield connection | – |
| Connection facility to additional power contact | 8 |
| Bit width in the process image | 0 |
| Electrical connection to DIN rail | – |
| Housing width in mm | 12 |
| Side by side mounting on EtherCAT Terminals with power contact |
yes, left without PE |
| Side by side mounting on EtherCAT Terminals without power contact |
– |
| Weight | approx. 50 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Pluggable wiring | for all ESxxxx terminals |
| Approvals | CE, UL, Ex |
| Nhà cung cấp | Đại lý Beckhoff |
|---|---|
| Xuất xứ |
