Hộp điện VAK, VKK hãng Schenck process được sử dụng ở trong các khu vực nguy hiểm và môi trường khắc nghiệt. TTN là đại lý hãng Schenck process tại Việt Nam
0877.105.430
cong@ttnvietnam.vn
Chi tiết sản phẩm
Hộp điện VKK 28001 Schenck process Việt Nam
VAK 28040 Terminal boxes Schenck Vietnam
Đặc điểm kĩ thuật của sản phẩm:
The cable boxes, types VKK 280×1, are designed for extension of the load cell connecting cable. The cable summation boxes, types VKK 280×6, VKK 280×4 and VKK 280×8, are designed for interconnecting the load cells of a scale.
In case of high demands on weighing accuracy, the built-in series resistors can be used for corner adjustment. Thanks to the plug-in jumpers balancing is especially easy and time saving. Depending on the application, the junction boxes type VAK can be used for mere extension of the load cell connecting cable and other sensor lines, but also for summation of the signals of multiple load cells (without corner adjustment).
Kiểu thiết kế sản phẩm:
Design

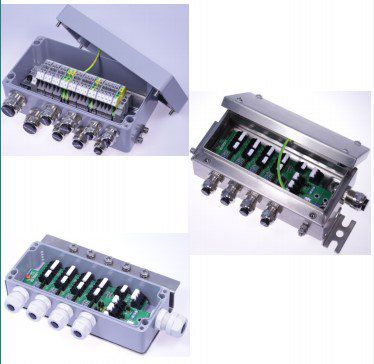

The VAK/VKK terminal boxes are made of aluminium diecast, polyester or stainless steel.
For easy mounting within the terminal box, all cable connections are screwed in place or clamped.
Polyester cases are equipped with plastic cable screw connections, aluminum and steel cases are equipped with bronze screw connections – steel ones are available as an option.
Thông tin sản phẩm của hãng: SCHENCK PROCESS
Thông tin sản phẩm của TTN: SCHECNK PROCESS VIỆT NAM
|
Variant |
Order No. |
Order No. |
IECEx |
|
EAC |
|
VKK 28001 |
V053956.B01 |
– |
– |
|
– |
|
Cable box, polyester housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28011 |
V053957.B01 |
V595989.B01 |
X |
|
– |
|
Cable box, aluminium housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28021 |
V053958.B01 |
V649087.B01 |
X |
|
– |
|
Cable box, stainless steel housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28004 |
V053953.B01 |
– |
– |
|
– |
|
Cable summation box for max. 4 load cells, polyester housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28014 |
V053954.B01 |
V595988.B01 |
X |
|
– |
|
Cable summation box for max. 4 load cells, aluminium housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28024 |
V053955.B01 |
V512515.B01 |
X |
|
– |
|
Cable summation box for max. 4 load cells, stainless steel housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28006 |
V076863.B01 |
– |
– |
|
– |
|
Cable summation box for max. 6 load cells, polyester housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28016 |
– |
V649089.B01 |
X |
|
– |
|
Cable summation box for max. 6 load cells, aluminium housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28026 |
– |
V649085.B01 |
X |
|
– |
|
Cable summation box for max. 6 load cells, stainless steel housing, spring terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28008 |
|
|
|
|
|
|
Cable summation box for max. 8 load cells, polyester housing, |
V041675.B01 |
– |
|
|
|
|
integrated overvoltage protection, screw terminals |
|
|
|
|
|
|
VKK 28018 |
– |
V649086.B01 |
X |
|
– |
|
Cable summation box for max. 8 load cells, aluminium housing, screw terminals |
|
||||
|
|
|
|
|
|
|
|
VKK 28028 |
– |
V649088.B01 |
X |
|
– |
|
Cable summation box for max. 8 load cells, stainless steel housing, screw terminals |
|
||||
|
|
|
|
|
|
|
|
VBS 28011 |
|
V053969.B51 |
|
|
|
|
Overvoltage protection module with aluminium housing, to protect the load cell resp. |
V053969.B01 |
– |
|
– |
|
|
(only 2D) |
|
||||
|
the control electronics |
|
|
|
|
|
|
|
|
|
|
|
|
|
VAK 28040 |
|
|
|
|
|
|
Junction box with 14 terminals, extension 1 load cell + 2 sensors or 2 load cells |
V029901.B01 |
– |
– |
|
– |
|
without corner adjustment, polyester housing |
|
|
|
|
|
|
VAK 28040-2GD |
|
|
|
|
|
|
Junction box with 14 terminals, extension 1 load cell + 2 sensors or 2 load cells |
– |
V583197.B01 |
X |
|
X |
|
without corner adjustment, aluminium housing |
|
|
|
|
|
|
VAK 28040-2GD-SS |
|
|
|
|
|
|
Junction box with 14 terminals, extension 1 load cell + 2 sensors or 2 load cells |
– |
V653900.B01 |
X |
|
X |
|
without corner adjustment, stainless steel housing |
|
|
|
|
|
|
VAK 28080 |
|
|
|
|
|
|
Junction box with 18 terminals, 4 load cell + 2 sensors (without corner adjustment), |
V583558.B01 |
– |
– |
|
– |
|
polyester housing |
|
|
|
|
|
|
VAK 28080-2GD |
|
|
|
|
|
|
Junction box with 18 terminals, 4 load cell + 2 sensors (without corner adjustment), |
– |
V580943.B01 |
X |
|
X |
|
aluminium housing |
|
|
|
|
|
|
VAK 28080-2GD-SS |
|
|
|
|
|
|
Junction box with 18 terminals, 4 load cell + 2 sensors (without corner adjustment), |
– |
V654495.B01 |
X |
|
X |
|
VAK 28051 |
V583561.B01 |
– |
– |
|
– |
|
Junction box with 16 terminals for the connection of motors, polyester housing |
|
||||
|
|
|
|
|
|
|
|
VAK 28051-2GD |
– |
V580776.B01 |
X |
|
X |
|
Junction box with 16 terminals for the connection of motors, aluminium housing |
|
||||
|
|
|
|
|
|
|
|
VAK 28051 |
– |
V654496.B01 |
X |
|
X |
|
Junction box with 16 terminals for the connection of motors, stainless steel housing |
|
||||
|
|
|
|
|
|
|
|
VAK 20120 |
F217763.03 |
|
|
|
|
|
Junction box with 15 terminals for the connection of motors, incl. the motor protective |
– |
– |
|
– |
|
|
**) |
|
||||
|
switch, polyester housing |
|
|
|
|
|
|
|
|
|
|
|
|
|
VAK 20120-2GD |
|
V657753.B01 |
|
|
|
|
Junction box with 15 terminals for the connection of motors, incl. the motor protective |
– |
(only 2D) |
X |
|
X |
|
switch, aluminium housing |
|
**) |
|
|
|
|
**) This order number refers to the standard terminal boxe with no motor protection. |
|
|
|
*) |
|
|
|
|
X = available |
|||
|
The motor protection is included on an order-specific basis. |
|
|
|||
|
|
|
– = not available |
|||
|
|
|||||
Phụ kiện của sản phẩm
DBS6
Overvoltage protection module for retrofit of a VKK 28006
VBS001
Overvoltage protection module without housing (printed circuit board)
D707465.01
V039944.B01
VAK 28080 Hộp điện hãng Schenck process Việt Nam
Đại lý phân phối hãng Schenck process
Hiệu suất sản phẩm:
As cable summation box, types VKK 280×4 are available for 4 load cells, types VKK 280×6 for 6 load cells and VKK 280×8 for 8 load cells. The terminal boxes are universally applicable.
For high temperatures or used in explosion hazard environments (up to approx. +100 °C – with use of appropriate cable and special cable glands 150 °C are possible),
If the terminal box is exposed to aggressive media or mounted in severe environments, polyester housings are preferred.
The stainless steel housings area suitable for both application areas. Load cells both with 4- and 6- wire cable can be connected.
All terminal boxes VKK are equipped with potential-equalization rail for correct connection of the potentialequalization lines.
All boxes guarantee that the correct cable screen connection has been made.
Terminal boxes for use in explosion hazard areas of category 2G/2D remain available.
The Right Belt Weigher for Every Belt Conveyor
Single-idler belt weigher type BEM
|
Achievable accuracy: |
1 % |
|
Maximum feed rate: |
approx. 4.000 t/h |
|
Range of belt widths: |
400 – 1.400 mm |
Single-idler belt weigher type BED
|
Achievable accuracy: |
0,5 % |
Maximum feed rate: approx. 15.000 t/h
Range of belt widths: 1.600 – 2.000 mm
Multi-idler belt weigher type BMP
|
Achievable accuracy: |
0,25 % |
Maximum feed rate: approx. 15.000 t/h
Range of belt widths: 500 – 2.000 mm
Single-idler belt weigher type BEP
|
Achievable accuracy: |
0,5 % |
|
Maximum feed rate: |
approx. 6.000 t/h |
|
Range of belt widths: |
400 – 1.400 mm |
Multi-idler belt weigher type BMC
|
Achievable accuracy: |
0,25 % |
Maximum feed rate:: approx. 20.000 t/h
Range of belt widths: 500 – 2.000 mm
