SENSiQ® Pendulum Mount – SPM cung cấp sản phẩm có độ chính xác cao nhất so với SEM của cùng hãng Schenck process tại Việt Nam, Thích hợp cho RTN và RTR / RTD, RTB
0877.105.430
cong@ttnvietnam.vn
Chi tiết sản phẩm

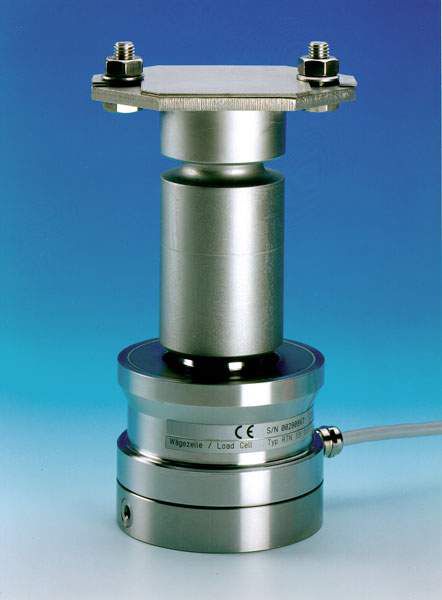

SPM 2.2t Pendulum Mount Schenck process Việt Nam
Thông tin sản phẩm của hãng: Schenck process
Thông tin sản phẩm hãng tại TTN: Schenck Việt Nam
Ứng dụng của sản phẩm:
The pendulum mount was designed for perfect interaction with the RTN load cell.
It is used in situations with extremely rough ambient conditions but where a long life cycle and the highest measuring accuracy are required.
Typical applications are vehicle scales and binweighers
Self-Aligning Mount for Load Cell SENSiQ™ RTN 1 t … 470 t Schenck Việt Nam
Đại lý Schenck process tại Việt Nam
Tính năng sản phẩm:
The weight to be measured is applied to the load cell by means of the pressure piece via the pendulum pressure piece.
The pendulum pressure piece prevents disturbance transverse forces from being applied to the load cell.
The self-centering effect of the bearing returns automatically the scales to the home position after each deflection.
Depending on the installation situation the pendulum may require limit stops.
|
Variants |
Order number |
Order number |
Variants |
Order number |
Order number |
|
|
without base plate |
with base plate |
without base plate |
with base plate |
|||
|
SPM 1 t |
D 725565.16 |
D 725565.11 |
SPM 47 t |
D 725565.08 |
D 725565.03 |
|
|
SPM 2.2 t |
D 725565.17 |
D 725565.12 |
SPM 68 t |
D 725565.09 |
D 725565.04 |
|
|
SPM 4.7 t |
D 725565.18 |
D 725565.13 |
SPM 100 t |
D 725565.10 |
D 725565.05 |
|
|
SPM 10 t |
D 725565.19 |
D 725565.14 |
SPM 150 t |
– |
D 726616.01 |
|
|
SPM 15 t |
D 725565.20 |
D 725565.15 |
SPM 220 t |
– |
||
|
SPM 22 t |
D 725565.06 |
D 725565.01 |
SPM 330 t |
– |
D 726616.03 |
|
|
SPM 33 t |
D 725565.07 |
D 725565.02 |
SPM 470 t |
– |
D 726616.04 |
SENSiQ™ Fixed Mount (SFM)
Pivot for load cell applications with nominal loads from 1 t … 470 t
|
Type |
Ordering no. |
including |
Height |
Ordering no. |
including |
Shims |
|||||||||||
|
SFM height just like SEM *) |
weld-on plates |
SFM height just like SSM **) |
weld-on plates |
||||||||||||||
|
VFN 4,7 |
V021894.B02 |
– |
H1 |
V021894.B01 |
above |
H2 |
|||||||||||
|
VFN 22 |
V021837.B02 |
– |
H1 |
V021837.B01 |
above |
H2 |
|||||||||||
|
VFN 33 |
V021776.B02 |
– |
H1 |
V021776.B01 |
above |
H2 |
|||||||||||
|
VFN 47 |
V021995.B02 |
above |
H2 |
V021995.B01 |
above and down |
H total |
|||||||||||
|
VFN 68 |
V021974.B02 |
– |
H1 |
V021974.B01 |
above and down |
H total |
|||||||||||
|
VFN 100 |
V021777.B02 |
above |
H2 |
V021777.B01 |
above and down |
H total |
|||||||||||
|
VFN 150 |
V022583.B02 |
– |
H1 |
V022583.B01 |
above and down |
H total |
|||||||||||
|
VFN 220 |
V022592.B02 |
– |
H1 |
V022592.B01 |
above and down |
H total |
|||||||||||
|
VFN 330 |
V038093.B03 |
– |
H1 |
V038093.B07 |
above and down |
H total |
|||||||||||
|
VFN 470 |
V049185.B02 |
above |
H2 |
V049185.B04 |
above and down |
H total |
|||||||||||
SENSiQ™ Fixed Mount PLUS (SFM PLUS)
Fixed bearing for load cell applications for nominal loads from 10 t … 330 t
Schenck process Việt Nam
|
Variants |
Order number |
|
10 t … 22 t |
V554135.B02 |
|
33 t |
V554136.B02 |
|
47 t |
V554137.B02 |
|
68 t |
V554138.B02 |
|
100 t |
V554139.B02 |
|
150 t |
V554140.B02 |
|
220 t |
V554141.B02 |
|
330 t |
V554142.B02 |
SENSiQ™ Secure Mount PLUS (SSM PLUS)
Limit Stop Unit for SENSiQ™ Elastomer Mount for Nominal Loads between 10 t … 330 t
SSM Schenck process Việt Nam
|
SENSiQ Secure Mount PLUS |
Permissible maximum forces |
|||
|
with SENSiQ Elastomer Mount |
without SENSiQ Elastomer Mount |
max. horizontal force |
max. vertical force |
|
|
and weld-on plate |
and without weld-on plate |
(lift force) |
||
|
Variants |
Order Number |
Order Number |
kN |
kN |
|
10 t … 22 t |
V555055.B03 |
V555055.B02 |
88 |
88 |
|
SSM 33 t Schenck process |
V555063.B03 |
V555063.B02 |
132 |
132 |
|
SSM 47 t Schenck Việt Nam |
V554145.B03 |
V554145.B02 |
188 |
188 |
|
68 t |
V554775.B03 |
V554775.B02 |
272 |
272 |
|
100 t |
V554152.B03 |
V554152.B02 |
400 |
400 |
|
150 t |
V555070.B03 |
V555070.B02 |
600 |
600 |
|
220 t |
V555077.B03 |
V555077.B02 |
880 |
880 |
|
330 t |
V555085.B03 |
V555085.B02 |
1320 |
1320 |
|
Accessories |
Thermal protection plate, splash water protection, weld-on plates |
|||
SSM 33 t schenck process Việt Nam

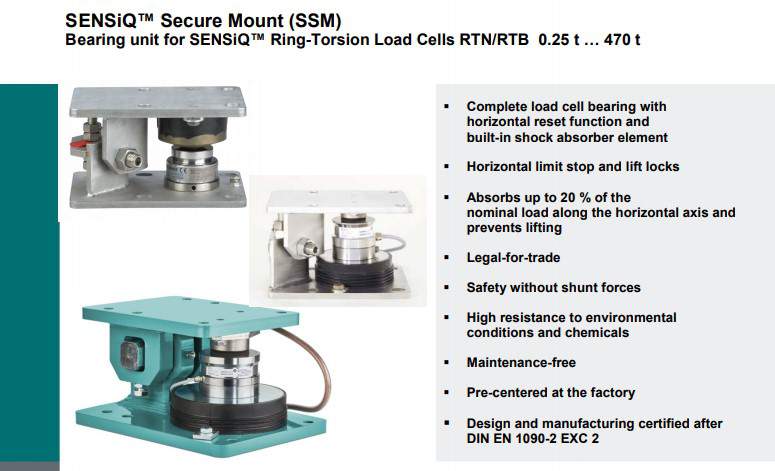

SENSiQ™ Secure Mount (SSM) Schenck process Việt nam
Bearing unit for SENSiQ™ Ring-Torsion Load Cells RTN/RTB 0.25 t … 470 t
|
Variants |
Order Number |
|
0.25 t |
V041091.B01 |
|
0.50 t |
V041092.B01 |
|
1 … 2.2 t |
D 731186.01 |
|
4.7 t |
D 731186.02 |
|
10 … 22 t |
D 731353.01 |
|
33 t |
D 731415.01 |
|
47 t |
V654503.B01 |
|
68 t |
V654503.B11 |
|
100 t |
V654503.B21 |
|
150 t |
V654503.B31 |
|
220 t |
V654503.B41 |
|
330 t |
V654503.B51 |
|
470 t |
V654503.B61 |
|
Accessories |
Thermal protection plate, splash water protection, weld-on plates |
|
See BV-D2228 |
SENSiQ™ Elastomer Mount (SEM)
Elastomer Mount for SENSiQ™ RTN/RTB 0.25 t … 470 t Load Cell
|
Standard SEM |
SEM with silicone (VMQ) |
||||||
|
Model/Order numbers |
Model/Order numbers |
||||||
|
SEM 0.25 |
V041386.B01 |
SEM 33 |
D 725575.02 |
SEM 1/2.2 |
D 726185.11 |
SEM 100 |
D 725575.25 |
|
SEM 0.50 |
V041387.B01 |
SEM 47 |
D 725575.03 |
SEM 4.7 |
D 726185.12 |
SEM 150 |
D 726186.11 |
|
SEM 1 |
D 726185.01 |
SEM 68 |
D 725575.04 |
SEM 10 … 22 |
D 725575.20 |
SEM 220 |
D 726186.12 |
|
SEM 2.2 |
D 726185.01 |
SEM 100 |
D 725575.05 |
SEM 10 … 22 |
D 725575.21*) |
SEM 330 |
D 726186.13 |
|
SEM 4.7 |
D 726185.02 |
SEM 150 |
D 726186.01 |
SEM 33 |
D 725575.22 |
SEM 470 |
D 726186.14 |
|
SEM 10 … 22 |
D 725575.10 |
SEM 220 |
D 726186.02 |
SEM 47 |
D 725575.23 |
||
|
SEM 10 … 22 |
D 725575.11*) |
SEM 330 |
D 726186.03 |
SEM 68 |
D 725575.24 |
||
|
SEM 470 |
D 726186.04 |
||||||
|
Also available: |
|||
|
• |
SENSiQ™ Secure Mount |
0.25 t … 470 t |
(BV-D2083) |
|
• |
SENSiQ™ Secure Mount PLUS 10 t … 330 t |
(BV-D2444) |
|
|
• |
SENSiQ™ Pendulum Mount |
1 t … 100 t |
(BV-D2025) |
|
• |
SENSiQ™ Fixed Mount |
1 t … 470 t |
(BV-D2182) |
|
• |
SENSiQ™ Fixed Mount PLUS |
10 t … 330 t |
(BV-D2442) |
