Series SFI-300F Dywer, thiết bị đo lưu lượng Dywer Việt Nam
Series SFI-300F Dywer, thiết bị đo lưu lượng Dywer Việt Nam
Thiết bị đo lưu lượng Series SFI-300F Dywer Việt Nam, đai lý Dywer Việt Nam, hãng Dywer tại Viêt Nam
0877.105.430
cong@ttnvietnam.vn
Chi tiết sản phẩm
Thiết bị đo lưu lượng Series SFI-300F Dywer Việt Nam.

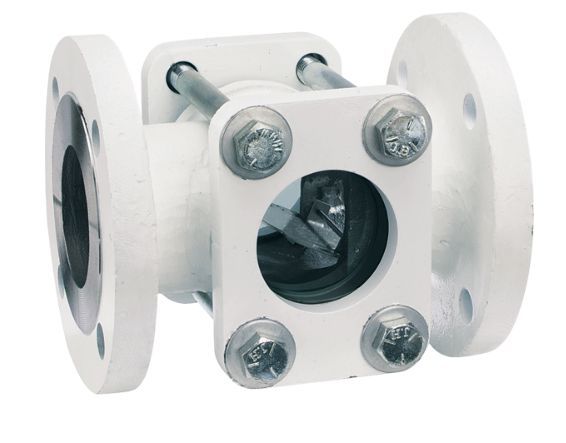

Series 300F Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 300F Series offer ANSI flange process connections, double viewing windows, and bodies of carbon steel or 316 SS. The 350F type has a double window with no moving indicator and the 360F type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.
Model |
Description |
SFI-350FCS-1-1/2 |
Sight flow indicator, 1-1/2″ body, 6.375″ (162 mm) length, 5.000″ (127 mm) flange dia., 2.313″ (58 mm) viewing dia., 12 lb (5.5 kg). |
SFI-350FCS-2 |
Sight flow indicator, 2″ body, 6.500″ (165 mm) length, 6.000″ (152 mm) flange dia., 2.313″ (58 mm) viewing dia., 16 lb (7.5 kg). |
SFI-350FCS-3 |
Sight flow indicator, 3″ body, 8.875″ (225 mm) length, 7.500″ (191 mm) flange dia., 3.000″ (76 mm) viewing dia., 38 lb (17 kg). |
SFI-350FCS-4 |
Sight flow indicator, 4″ body, 10.250″ (260 mm) length, 9.000″ (229 mm) flange dia., 4.000″ (102 mm) viewing dia., 56 lb (25 kg). |
SFI-350FCS-6 |
Sight flow indicator, 6″ body, 12.500″ (318 mm) length, 11.000″ (279 mm) flange dia., 6.000″ (152 mm) viewing dia., 120 lb (55 kg). |
