Cân SensiQ WB 50 t Schenck process Việt Nam

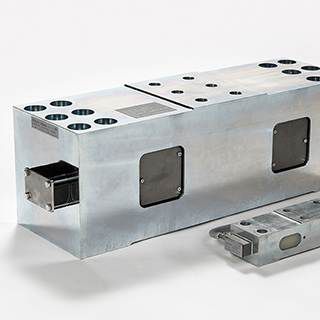

Weightbeam SENSiQ WB 100 t Schenck process
Thông tin sản phẩm tại hãng: Schenck process
Thông tin sản phẩm tại TTN: Schenck Việt Nam
Các ứng dụng của sản phẩm:
Ladle turret scale
Ladle transfer car
Scrap basket, roller and tundish scales
Silo and bin weighers
Chức năng, đặc điểm:
Simple and cost-effective installation through direct bolted joint with the connecting structure without moving parts
No additional straps or hold down bolts required
High functional safety and availability, even with frequently unavoidable impact loads and constraining forces
WB 40 t |
WB 50 t |
WB 100 t |
WB 150 t |
WB 200 t |
WB 600 t |
Ref |
||||||||||||
|
Nominal load |
Emax |
40 t |
50 t |
100 t |
150 t |
200 t |
600 t |
|||||||||||
|
Limit load (with Lq = 0.15 x LI) |
LI |
100 t |
120 t |
210 t |
290 t |
360 t |
1000 t |
|||||||||||
|
Limit load = max. safe load |
||||||||||||||||||
|
Breaking load (with Lq = 0.15 x Ld) |
Ld |
160 t |
200 t |
350 t |
480 t |
600 t |
1200 t |
|||||||||||
|
Max. permitted lateral load |
Lq, max |
40 t |
50 t |
85 t |
120 t |
150 t |
400 t |
|||||||||||
|
Nominal characteristic value |
Cn |
0.95 mV / V |
1.08 mV / V |
1.38 mV / V |
1.57 mV / V |
1.63 mV / V |
1.40 mV/V |
Emax |
||||||||||
|
Compound error |
Fcomb |
±0.1 % *) |
±0.07 % *) |
0.1 % *) |
Cn |
|||||||||||||

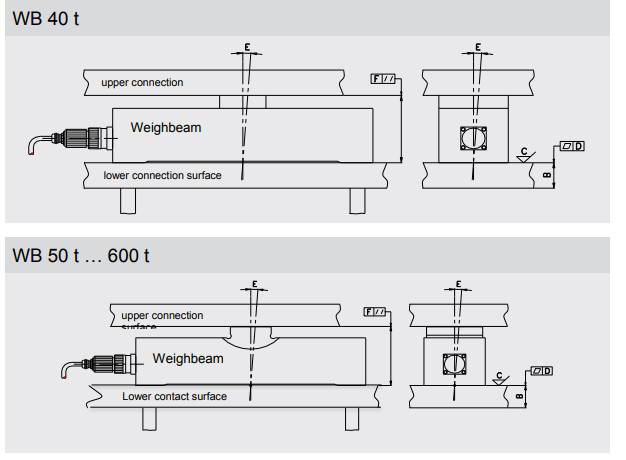

Bản vẽ SENSiQ WB 600 t công nghệ cân Schenck process
Material selection “A”: Construction steel is used of at least S355 grade must be used.
Operating thickness “B”: This depends on the stiffness of the overall construction. The operating thickness of the connect surfaces must be at least 40% of the the weighbeam height.
Surface quality “C”: The average peak-to-valley height required of the contact surfaces is 6.3 μm.
Flatness “D”: The maximum permissible flatness tolerance of each contact surface is 0.05 mm.
Angle error to the vertical axis “E”: The permitted maximum value for the angle deviation of the contact surface to the vertical axis is ± 2° in both planes.
Plane parallelism “F”: The upper and lower contact surfaces to the weighbeam must be plan parallel to each other within at least 0.1 mm.
About Schenck Process
Schenck Process is the global technology and market leader in applied measuring technology. We make processes work in all areas of industry throughout the world. For us that means improving our customer processes in terms of reliability, efficiency, and accuracy. Combining outstanding equipment and extensive process knowledge, we develop and manufacture innovative solutions for weighing, feeding, conveying, screening, automation, and air filtration applications. We focus on the needs of our customers and support them through the whole lifecycle of a product. For more information, visit schenckprocess.com
Schenck Process customers love the simple and cost-effective installation of these SENSiQ® WB weighbeams. They connect directly inside the given structure without moving parts and transmit all disturbance forces and moments with minimal measuring value interference. Plus, SENSiQ® WB weighbeams function entirely maintenance-free in the harshest conditions, offering high long-term stability and high reproducibility.
Typical applications are ladle turret, ladle transfer car, scrap basket, roller table and tundish car scales as well as silo and hopper weighers.
The full SENSiQ® WB loadcell range now includes 11,5 t, 15 t, 25 t, 40 t, 50 t, 100 t, 150 t, 200 t and 600 t rated capacity types.
Một số order code của sản phẩm
|
Design |
Order number with straight plug outlet |
Order number with lateral plug outlet on the right |
||
|
(see drawing above) |
(cf. page 5) *) |
|||
|
WB 40 t |
V711375.B03 cân định lượng |
V758596.B01 |
||
|
|
WB 50 t |
V711375.B13 |
V758596.B11 |
|
WB 100 t |
V711375.B23 |
V758596.B21 |
||
WB 150 t |
V711375.B33 |
V758596.B31 |
||
WB 200 t |
V711375.B43 |
V758596.B41 |
||
WB 600 t |
V711375.B53 |
V758596.B51 |
||
|
|
|
|
|
|
Spare part: |
V090162.B01 |
— |
||
Schenck Process, the global market leader in measuring and process technology solutions, is proud to announce the latest generation of its SENSiQ® WB weighbeam technology.
For more than 30 years Schenck Process weighbeams, now all branded SENSiQ® WB, have been the standard for tough weighing tasks, especially in the heavy duty and harsh environment of steel production.
The latest release from Schenck Process is the world’s highest capacity loadcell with a nominal capacity of 600 metric tonnes for installation by simple bolting into the given steel structure. This makes it ideal for hopper scales with a total weight of up to 2,500 tonnes as well as for hoppers in train loading systems.
The original, proven over more than 30 years, optimized to the latest state of technology
Expanded to an operating temperature from -40 °C … 180 °C
High precision with a maximum combined error of ±0.07 % across the entire temperature range
Extremely robust and maintenance-free, IP68
6-wire circuit
Integrated sensor for temperature monitoring and compensation, and integrated overvoltage protection
Separate installation of the connecting cable through plug connection on the Weighbeam, also available as hinged plug outlet
