RTB 0.5 t Schenck process Loadcell Việt Nam

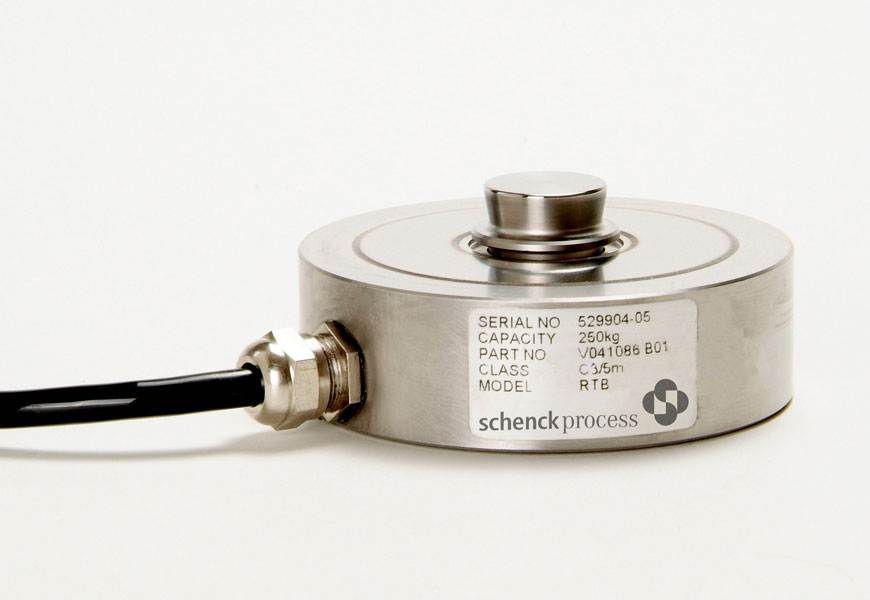

Schenck RTB 0,25 T Loadcell



Thông tin sản phẩm hãng: SCHENCK PROCESS

Thông tin sản phẩm TTN: SCHENCK VIỆT NAM



Legal-for-trade design according to OIML

High accuracy, even for very small application areas (for legal-for-trade applications up to at least 15 %)

Low power consumption due to high input impedance of 1100 Ω

ATEX/IECEx approval for category 1GD (intrinsically safe to operate) or 3GD (not intrinsically safe)

Protection class IP68

Application

The load cell as transducer converts the mechanical input variable force proportionally into the electronic output variable voltage. The specific model of the ring torsion load cell offers the user specific advantages:

The extremely small frame size simplifies the use in almost all weighing device applications

The robust construction allows problem-free transport, installation and operation, also under rough ambient conditions (disturbance forces, temperature) Construction

Hermetically sealed encapsulation through laser welding and glass-metal implementation (IP68)

Corrosion protection through the use of stainless steel



RTB Ring torsion load cell Schenck process Việt Nam

Load cells RTB 0,5T Schenck process



Design

Accuracy class

	[t]		C3		C5
	0.13		V041085.B01		—
	0.25		V041086.B01		—
	0.50		V041087.B01		V041087.B05
	0.25 MR		V041086.B07		—
	0.50 MR		V041087.B07		—

0.13		V041085.B11		—
0.25		V041086.B11 schenck		—
0.50		V041087.B11		V041087.B15

Type	Material of metal parts	Height	Overall height H + 5	Material number
SEM 1 t … 4.7 t	1.4301	34	132	D733119.01
SEM 10 t … 22 t	1.4301	34	164	D733119.02
SEM 33 t	S235, galvanised	34	202	D733119.03
SEM 47 t	S235, galvanised	62	260	V081425.B01
SEM 68 t	S235, galvanised	72	292	V081425.B02
SEM 100 t	S235, galvanised	82	321	V081425.B03
SEM 150 t	S235, galvanised	97	417	V081425.B04
SEM 220 t	S235, galvanised	112	485	V081425.B05
SEM 330 t	S235, galvanised	132	559	V081425.B06
SEM 470 t	S235, galvanised	157	677	V081425.B07
SSM 1 t … 4.7 t	1.4301	22	138	V020696.B01
SSM 10 t … 22 t	1.4301	22	172	V020696.B02
SSM 33 t	S235, galvanised	22	214	V020696.B05
SSM 47 t	S235, galvanised	52	305	V024275.B01

Tính năng sản phẩm Schecck process :

High reproducibility

High long-term stability and therefore consistently high accuracy permanently

Extremely small measured value influence as a result of lateral forces

High functional safety, even with frequently unavoidable impact loads and constraining forces, as well as with electrical interferences

Torque-free force input/output as a result of the direct, vertical power train



Type	Material	Height	A	B	C	Material number
SEM / SSM 1 t … 4.7 t	1.4301	15	140	100	M 12	D733120.06
SEM / SSM 1 t … 4.7 t	S235, galvanised	15	140	100	M 12	D733120.01
SEM / SSM 10 t … 22 t	1.4301	20	180	140	M 16	D733120.04
SEM / SSM 10 t … 22 t	S235, galvanised	20	180	140	M 16	D733120.02
SEM / SSM 33 t	S235, galvanised	25	240	200	M 20	D733120.03



Cảm biến tải trọng RTB Schenck process Việt Nam

Construction Schenck

Heat insulation plates consist of several layers of insulating material which are separated by thin steel plates to improve load distribution.

The predefined packs extend the load cells application temperature range to 150 °C.

Heat insulation plates with different dimensions are also available on request for different ambient conditions.

The weld-on plates are designed thus that they can be combined with both SENSiQ Secure Mount SSM and SENSiQ Elastomer Mount SEM.

Application

Heat insulation plates prevent heat transfer from a load carrier, e.g. a hot hopper, to the load cells via the mount elements.

In this way, errors of measurements caused by inadmissibly high temperatures or thermal gradients can be prevented.

The load cells Schenck application range is extended.

Weld-on plates simplify installation of the load cell mounts. There is no necessity to make precise fastening borings above and below the mount or to correct them during installation. Weld-on plates can also be used for height leveling, e.g. when retrofitting.

Heat insulation and weld-on plates can be combined.





Ring torsion load cell Schenck process RTB 0.13T Việt nam

Đại lý Schenck process tại Việt Nam



Schenck process RTB 0.13 t loadcells Việt nam
