Rotary airlock valve

RVS JNC Valve | Van xoay định lượng

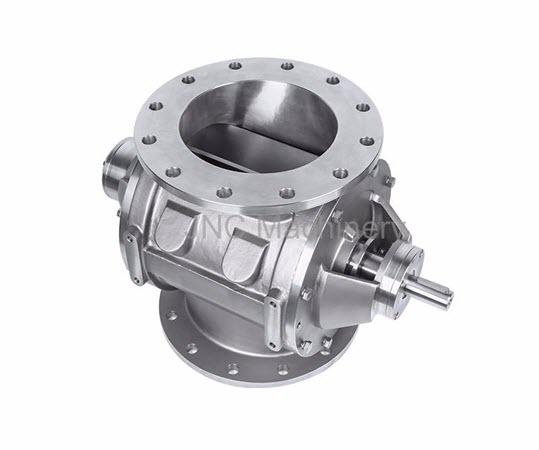

Discharging and metering valve for powders Heavy duty rotary valves are designed for general use on pneumatic conveying systems for both metering and airlock duties, suitable for both vacuum and pressure application on a wide variety of powders and granules, with feeding shoe also suitable for feeding material into pneumatic conveying systems, operation possible without leakage gas venting.
Rotary valve for your pneumatic conveying system to improve your material flow.

RVS JNC Valve - Rotary airlock valve - Van khóa khí

Structure of RVS

Features and Function		Options
	Available in 10 flange diameters from 100mm to 600mm; and 10 heights, from 190mm to 930mm		304, 316,304L,316L cast stainless steel valve housing and endplate
	Standard Valves manufactured in Stainless Steel 304		6 vane, 10 vane or 12 vane rotor.
	Drilled flanges in accordance with GB PN10, ANSI 150#, DIN PN10, JIS10K		Rotor design: close ended, scalloped , radius pocket, and adjustable-tip
	Close vane tolerances ensure high sealing and feeding efficiency and minimum air leakage.		Replaceable rotor wear tips
	Outboard bearings are standard and a full range of shaft seal options is available		Interior coatings: hard chrome, tungsten, and Teflon
	Excellent performance in high-temperature applications up to 250°C,480oF		Air purge shaft sealing
	Pressure differentials up to 1.5bar (21PSI).		Valve housing vent ports.
	Open ended rotor with 8 vans		Accessories: Drop-out box, speed monitor, vent box, Air purge regulation station.

Volumetric Capacity

Model	Ltr/Rev	*Inlet/Outlet**							Other Dimensions
Model	Ltr/Rev	Ø A	Ø B DIN	Ø C DIN	D DIN	Ø B ANSI	Ø C ANSI	D ANSI	E	H	F	G	Y	*Z
RVS 100 JNC Valve	1	100	180	220	8 x Ø 18	——	——	——	10	190	205	230	——	——
RVS 150 JNC Valve	4	150	240	285	8 x Ø 22	241.3	279	8 x Ø 22.2	15	320	245	265	37.5	1″
RVS 200 JNC Valve	10	200	295	340	8 x Ø 22	298.4	343	8 x Ø 22.2	15	380	275	305	55	1¼”
RVS 250 JNC Valve	18	250	350	395	8 x Ø 22	361.9	406	8 x Ø 25.4	18	440	322	355	65	1¼”
RVS 300 JNC Valve	30	300	400	445	8 x Ø 22	431.8	483	8 x Ø 25.4	23	520	365	405	85	1¼”
RVS 350 JNC Valve	45	350	460	505	8 x Ø 22	476.2	533	8 x Ø 28.6	25	580	403	445	90	1½”
RVS 400 JNC Valve	65	400	515	565	8 x Ø 24	539.7	597	8 x Ø 28.6	25	640	433	475	105	1½”
RVS 450 JNC Valve	90	450	565	615	8 x Ø 24	577.8	635	8 x Ø 31.7	25	700	468	535	115	1½”
RVS 500 JNC Valve	120	500	620	670	8 x Ø 24	635	699	8 x Ø 31.7	30	780	513	575	130	2″
RVS 600 JNC Valve	200	600	725	780	8 x Ø30	749.3	813	8 x Ø 34.9	35	930	578	640	190	2″
*Note: Technical modification are possiblem dimensions in mm
