RTN 10 t Schenck process Loadcell tại Việt Nam

Schenck process RTN 4.7 t Load cells

Ring Torsion Load Cell RTN
Our classic load cell: Very compact also for high capacities, extremely reliable as well as durable and very accurate in measuring results. The original only from Schenck Process.
Use in many different applications such as filling of valuable bulk materials in the case of hopper scales or precision as in vehicle scales …
Rated capacity: 1 t – 470 t. Accuracy classification: +/- 0.05% (Non-legal-for-trade) to C5/C4 Mi-7.5
(legal-for-trade, combined error = 0,01 %)
Many different special versions are also available such as: different cable lengths; special IP protection; protection against chemical substances; suitable for hazardous areas; high temperature or connecting thread holes

Sản phẩm của hãng: Schenck process

Sản phẩm tại Việt Nam: Schenck process Việt Nam

Ring-Torsion Load Cells RTN Schenck process Việt Nam

Một số code sản phẩm

https://schenckprocesstmp.gianhangvn.com/rtn-1-t-loadcell-schenck-process-viet-nam-1053767.html

Ứng dụng sản phẩm:

Acting as a transducer, the load cell converts the mechanical input signal, the load, proportionally into the electrical output voltage.

The consistent optimization of the ringtorsion load cells offers additional advantages:

The extremely low headroom simplifies the use in almost all weighing applications

The sturdy design enables easy transport, installation, and operation, even under very harsh environmental conditions (e.g. aggressive media, interfering forces, or extreme temperatures)

Tính năng, đặc điểm:

High measuring sensitivity

High repeatability

High long-term stability and, thus, continuing and consistently high accuracy

 Minimal effect on accuracy by side forces

High reliability and availability, even in case of unavoidable shock loads, constraining forces or electrical interferences

 Integral excessive voltage protection

Moment-free load input/output due to direct, vertical force flow

RTN LoadcellSchenck process Việt Nam

Đại lý phân phối Schenck process

Phụ kiện:

SENSiQ™ Elastomer Mount (SEM)

SENSiQ™ Secure Mount (SSM)

SENSiQ™ Pendulum Mount (SPM)

SENSiQ™ Fixed Mount (SFM)

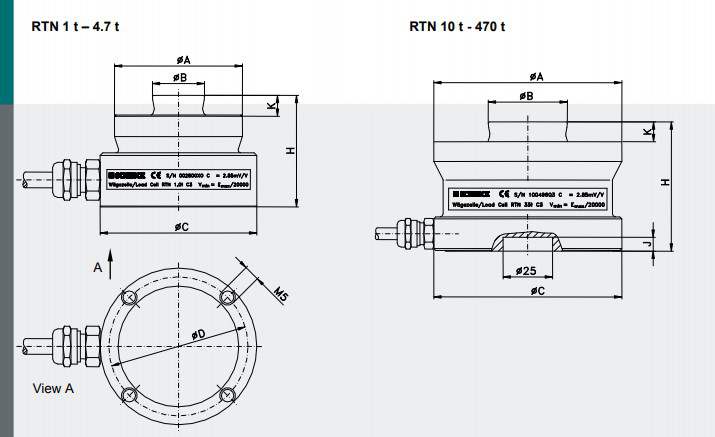

Bản vẽ kĩ thuật RTN 4.7 t Schenck process Loadcell

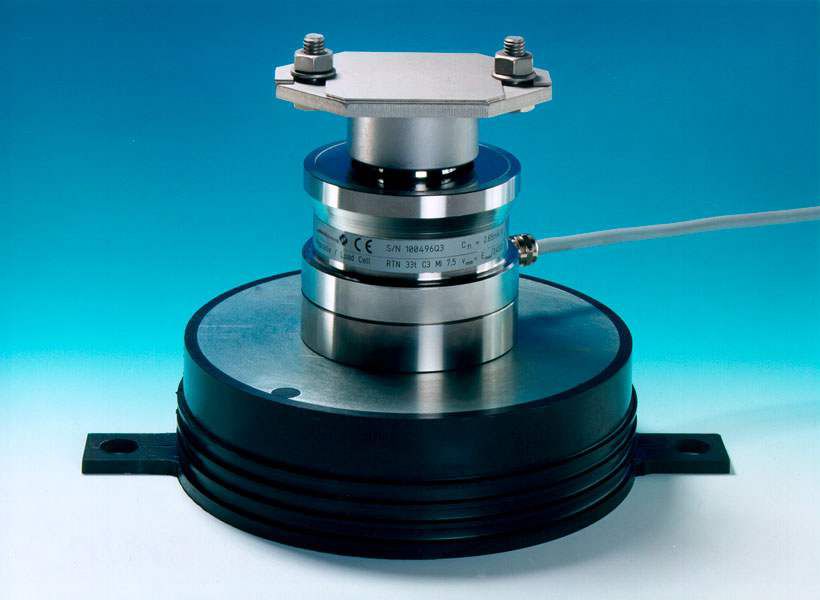

RTN 470 t Schenck process Loadcell Vietnam
