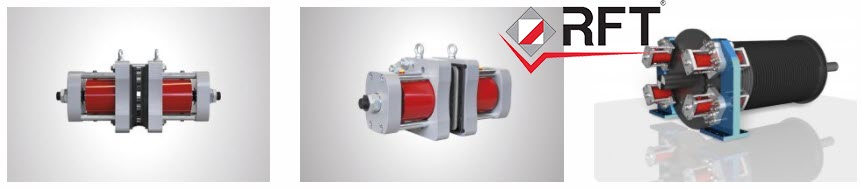

CALIPER SAFETY DISC BRAKE TYPE SCFH
Phanh an toàn type SCFH ROMER Fordertechnik

Product description
“Low-speed” brake.
Caliper safety disc brake direct acting at the board disc of a rope drum.
Load crash security and protection ( also reacting in case of gear shaft fracture).
- Direct-acting / Without lever transmission
- Pad forces up to 400 kN per clamp system
- Clamp varations on one brake disc (e.g: 4 x SCFH-4= 1600 kN pad force)
- High and independent direction of rotation braking torque
- Two identical clamp halves
- Manual adjustment of brake lining wear
- Lifting gap adjustable from 1 mm to 3 mm
- The hydraulic system is completely encapsulated
- Low-wear sintered brake linings as standard
- MADE IN GERMANY, own production
PLEASE NOTE:
The “Fast-speed” brake (between motor and gear box) operated electro-hydraulical (thruster) should be equipped with the “TURBO control system for thrusters” to guarantee almost simultaneous reaction times of both (“Fast- and Low” speed brakes) brake systems. Enormous impacts into the gear box due to different reaction times can be strongly reduced or can be prevented!
FUNCTIONAL PRINCIPLE
- Braking by spring force
- Lifting by hydraulic cylinder
- Self-acting in case of power failure
OPTION
- Monitoring equipment for brake opened, closed, wear
(Please indicate 2 limit switches) - Hand lifting via hand pump on the hydraulic power unit
- Hydraulic power units are suitable for parallel operations of clamps
- Special design for increased or lower ambient temperatures
- Hydraulic system with hardly inflammable hydraulic liquid
- Brake discs with hub or in flange-mounted
- Console construction (Please advise requested clamp position and dimensions)
