Bộ chuyển đổi điên áp Nick Việt Nam

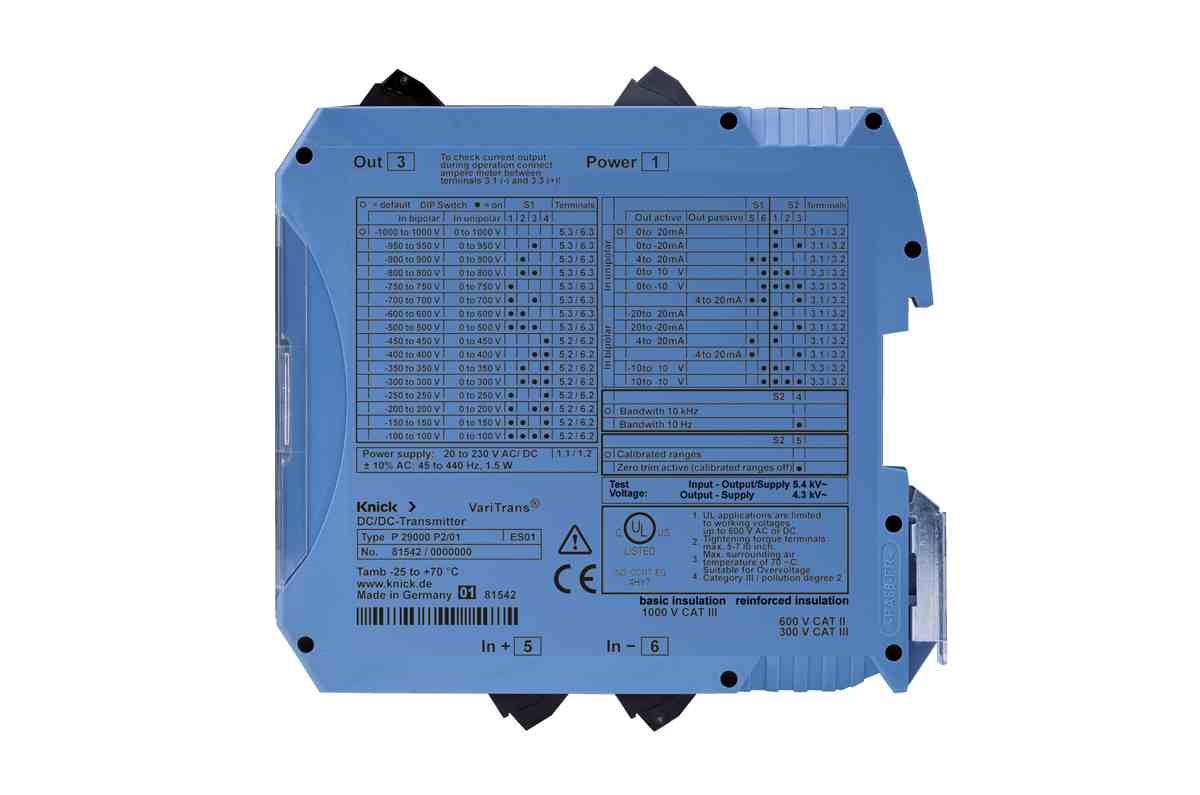

Thông số kỹ thuật P29000 Nick

Compact high-voltage isolation amplifiers with safe galvanic isolation, VariPower broad-range power supply and genuine calibrated range selection.

Working voltages up to 1000 V AC/DC and test voltages up to 5.4 kV AC, maximum performance in a compact modular housing.

High-voltage VariTrans P 29000 series isolation amplifiers are available in two input versions for a variety of requirements: high voltage, mV. The devices are ideal for monitoring and controlling electrical drive systems operated with DC voltages and feature a passive output for direct connection to a supplying PLC. Input voltages from ±100 V to ±1000 V DC are galvanically isolated and provided at the output as standard 0/4 … 20 mA or 0 …. 10 V signals or as a bipolar signal in the range of -20 … 20 mA or -10 … 10 V.

Typical applications are DC current and servo drives, generators etc, as well as power supplies for welding units and inverters for solar or wind power systems. The extraordinary performance and flexibility of the isolation amplifiers supports the user in the development of the most diverse products or system solutions.

Facts

• Universal usability input 20 mV to 1000 V

• Working voltages up to 1000 V AC/DC

• Protective separation according to EN 61140 – protection of the maintenance staff and subsequent devices against excessively high voltages up to 600 V AC/DC

• Test voltage 5.4 kV AC across input and output
