Control

NXF4000

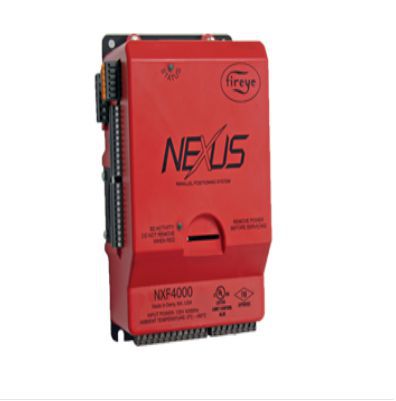

Integrated Burner Management controller w/ parallel positioning, 120 VAC input. Requires plug-in FSG daughtercard

NXF4000-230V

Integrated Burner Management controller w/ parallel positioning, 230 VAC input. Requires plug-in FSG daughtercard

PPC4000

Parallel positioning system, 120 VAC input. Used with external flame safeguard control

PPC-4000-230V

Parallel positioning system, 230 VAC input. Used with external flame safeguard control

Display

NXD410

User Interface with keypad, 24 VDC operation, 4 line back lit LCD display, panel mount only, includes mounting brackets.

59-562-2

Cable assembly, 10 feet length, for interfacing NXD410 to Control

NXTSD407

7” (diagonal) color touchscreen display

NXTSD413

13” (diagonal) color touchscreen display

129-126-2

Replacement cable kit (power & comms) for NXTSDxxx Touchscreens

Servos

FX04, -1

Servo motor, 24 VDC operation, 4Nm, 3 lb.-ft. torque, without connectors, accepts 1/2 inch NPT fitting, minimum travel time of 30 seconds for 90° (-1 with quick disconnect connectors)

FX20, -1

Servo motor, 24 VDC operation, 20Nm, 15 lb.-ft. torque, without connectors, accepts 1/2 inch NPT fitting, minimum travel time of

30 seconds for 90° (-1 with quick disconnect connectors)

FX50, -1

5 wire Modbus Servo-motor, 37 ft lbs., 50 Nm, 24 VDC, with terminal block wiring connections. (-1 with quick disconnect connec- tors)

Servo Cables / Accessories

59-565-6

Cordset, 6 feet, 1/2” NPT connectors on both ends, PVC jacket, temperature rating -40°C to 105°C, meets NEMA 1,3,4,6P and

IEC67

59-565-40

Cordset, 40 feet, 1/2” NPT connectors on both ends, PVC jacket, temperature rating -40°C to 105°C, meets NEMA 1,3,4,6P and

IEC67

Connector Kit

129-192

Connector, field wirable. Used for FX04-1, FX20-1, FX50-1 servos with connectors. Use cable 59-561

129-194

Servo (male) connector kit for FX04, FX20, FX50

59-565

Cable, 1 twisted pair, 2 power wires, suitable for servo hookup

O2 Probe

NXCESO2-8

O2 probe assembly, 8” insertion (kit version available)

NXCESO2-16

O2 probe assembly, 16” insertion (kit version available)

NXCESO2-30

O2 probe assembly, 30” insertion (kit version available)

NXCESO2P42

Cartridge, probe replacement

35-381-2

Flange, O2 probe mounting

129-189

Cover, mounting flange

129-190

Fan replacement kit for NXCESO2 probe

Pressure Transducers

BLPS-15, -25, -30

Pressure transducer, 0 to 15 psi (0 to 1030 mb),  -14.7 to 25 psi (-1013 to 1720 mb), 0 to 30 psi (0 to 2070 mb), 4-20 mA output

linear with pressure. ¼” NPTF mounting. Screw terminal connections and conduit adapter cover.

BLPS-200, 300

Pressure transducer, 0 to 200psi (0 to 13.8 Bar), 0 to 300 psi (0 to 20.7 Bar), 4-20 mA output linear with pressure. ¼” NPTF mount- ing. Screw terminal connections and conduit adapter cover.

Temperature Transducers

TS350-2, -4, -8

Temperature sensor, Range 32°F to 350°F (0°C to 176°C), 4-20 mA output, linear with temperature. Insertion length is 2, 4, 8

inches. Stainless steel thermowell included.

TS752-2, -4, -8

Temperature sensor, Range 32°F to 752°F (0°C to 400°C), 4-20 mA output, linear with temperature. Insertion length is 2, 4, 8

inches. Stainless steel thermowell included.

FXIATS-140

Ambient temperature transmitter, -40°F to 140°F (-40°C to 60°C), 4-20mA output, 7 to 40VDC, NEMA enclosure

Plug-in Daughtercards

NXCESVFD

VFD plug-in card for PPC4000 / NXF4000

NXCESUV

UV plug-in card for NXF4000

NXCESIR

IR plug-in card for NXF4000

NXCESDC

Direct-couple plug-in card for NXF4000
