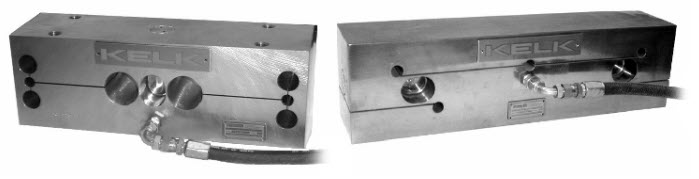

MONOBLOC Tensiometer Transducers

DESCRIPTION

MONOBLOC Tensiometer Transducers are designed to reliably and accurately measure strip and web tension in hostile industrial applications such as metals processing lines and paper mills. Applications include both new installations and the retrofitting or upgrading of existing systems. Tension is measured by sensing the force generated by the deflection of the strip over a sensing roll. MONOBLOC Tensiometer Transducers are designed to mount directly under roll bearing pillow blocks. Strain gages are the measuring elements within the transducer, permitting the use of DC excitation to provide exceptionally fast response to changes in tension.

SPECIFICATIONS

Capacity: Available from 1 to 300 kilonewtons. (See Table 1)

Excitation Voltage: 25 volts DC or AC maximum

Output: 1.0 millivolt per volt of excitation at rated capacity

Deflection: Less than 0.1mm (0.004 inches) at rated capacity

Overload without zero shift: 500% of rated capacity

 Linearity: Within ±0.1% of full scale output

Hysteresis: Within 0.1% of full scale output

Repeatability: Within ± 0.05% of full scale output

Thermal Zero Shift: ±0.008% (80 parts per million) of full scale output per °C over the normal compensated range from 20°C to 100°C (68°F to 212°).

Operating Temperature: 0°C to 170°C (32°F to 340°F)
