Chi tiết sản phẩm

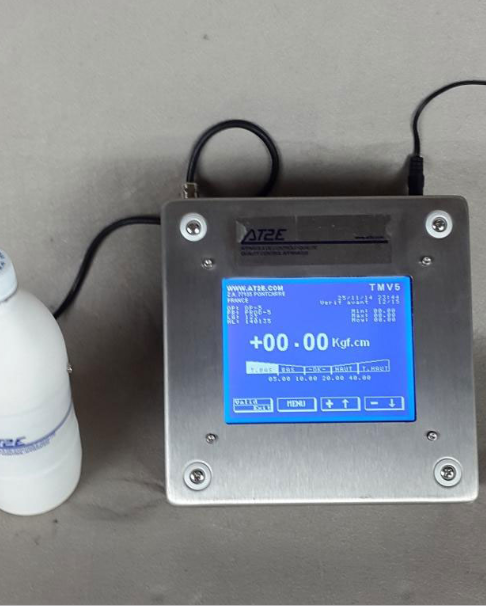

Máy đo lực vặn nắp chai có màn hình hiển thị BT ETA 5 AT2E
Thiết bị kiểm tra mô men xoắn BT ETA 5 AT2E Việt nam
BT ETA 5 AT2E Việt nam
BT ETA 5 – Touch Screen Dynamometric Torque Bottle AT2E Việt Nam
Technical specifications:
-
Touch screen display
-
Measurements in opening and closing directions
-
Measuring range: 00.00 to 99.00 Kgf.cm
-
3 measuring modes (mean, peak, peak+info)
-
Units: Kgf.cm / Inch.lbs / daN.cm / N.m / N.cm
-
Accuracy: ± 0,2 % of full scale
-
50 product memory with 4 limits each
-
4 thresholds by product (Low, v Low, High, v High)
-
15 operator memory
-
Setting of files by administrator code
-
Store and transfer up to 1000 measurements
-
Message + bar-graf f(x) of torque value
-
Dynamic display: statistics, hour, date
-
Display: product name, operator, batch N°, line N°
-
2 RS USB output (PC – printer)
-
Language: French, Italian, Spanish, English, German
-
Delivered with calibration certificate COFRAC
-
110 / 230 V – 50/60 Hz
Mechanical specifications:
-
Stainless steel frame / IP 64
-
Choice of measuring table: Food/Cosmetic/Pharmacy
-
Optional battery
-
Dimensions: Customize
-
Weight: 7 kg
-
Mini printer
-
Printing of results & statistics (hour + date)
-
QUALITORQ Software
-
Analog curve 10 000 pts / sec Software
-
Analog output
-
Customizable display
-
PLC integration on request
-
Easy / Safe opening bloc
-
Calibration pack
-
Transport case
BT-ETA-5 AT2E Việt Nam
BT-ETA-5
