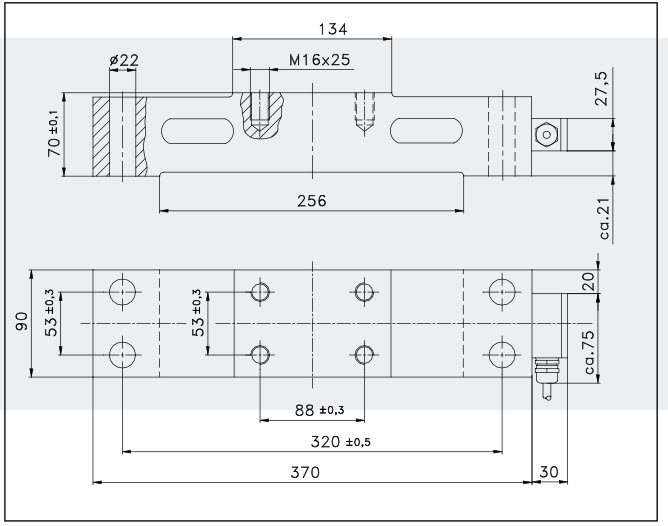

Loadcell cân bồn DWB Schenck Process | Loadcell cân Silo

Loadcell Cân Bồn | Loadcell Cân Sio

		DWB 11.5 t	DWB 15 t	DWB 25 t	Reference
Rated capacity	Ln	11.5 t	15 t	25 t
Limit load (with Lq = 0.15xLn)	LI	23 t	26 t	35 t
Rupture load (with Lq = 0.15xLn)	Ld	35 t	38 t	40 t
Max. admissible side load	Lqmax	15 t	18 t	25 t
Sensitivity	Cn	0.90 mV/V	1.16 mV/V	1.40 mV/V	Ln
Combined error	Fcomb	0.30%			Cn
Creep (30 m)	Fcr	0.05%			Cn
Input resistance	Re	378 Ω	378 Ω	756 Ω	Tr
Output resistance	Ra	350 Ω	350 Ω	700 Ω	Tr
Ref. supply voltage	Usref	10V
Max. supply voltage	Usmax	18V	18V	36V
Nominal temperature range	Btn	– 10°C to + 40°C
Service temperature range	Btu	– 15°C to + 80°C (HT quality + 120°C)
Reference temperature	Tr	+ 22°C
Storage temperature range	Bts	– 30°C to + 85°C ( HT quality + 120°C)
Temperature effect on zero signal	TKo	± 0.1% / 10K ( HT quality: ± 0.05%)			Cn in Btu
Temperature effect on sensitivity	TKc	± 0.07% / 10K ( HT quality: ± 0.05%)
Dead weight	me	18kg	18kg	18kg
Corrosion protection		hot dip galvanized
Protection class		IP 67

Cable specification		silicone RAL 7000 (grey)
		Ø 6.5mm x 15m – 30°C to + 150°C
		Ø 6.5mm x 15m – 30°C to + 150°C

Colour code		black	+ (82) / blue : input – (81)
Colour code		red	+ (28) / white : output – (27)
