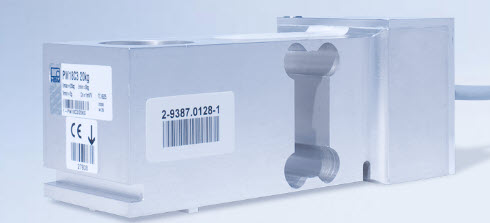

Load Cell PW18C3 HBM

Giải pháp tối ưu cho các trạm cân

The Single point load cell PW18 is specially designed for dynamic weighing processes. Applications are, for example, in multi-head combination weighers and check weighers. The maximum platform size – depending on nominal load – is from 400x400mm to 600x500mm, the length of the shielded 6-wire connector cable is 3m.

PW18C3/H1 Version:

• Integrated vertical overload stops, effective in positive and negative load direction
• Corrosion resistant, laser welded
• Barometric pressure balance
• Protection class IP 66

• High accuracy
• High overload limits
• High torsion / bending stiffness
• Protection class IP 67
• Max. capacity: 5 kg, 10 kg, 20 kg, 50 kg, 75 kg
• Material: Aluminum

Loadcell PW18C3-5kg,  PW18C3-10kg,  PW18C3-20kg,  PW18C3-50kg,  PW18C3-75kg,  PW18C3-0.5g,  PW18C3-1g,   PW18C3-2g,   PW18C3-5g,  PW18C3-10g, PW18C3/H1-5kg,  PW18C3/H1-10kg,  PW18C3/H1-20kg,  PW18C3/H1-50kg

Loadcell PW18C3/H1-75kg  PW18C3/H1-0.5g  PW18C3/H1-1g   PW18C3/H1-2g   PW18C3/H1-5g  PW18C3/H1-10g
